| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Breaking Capacity @ Rated Voltage | |
| Current Rating (Amps) | |
| Fuse Type | |
| Industrial Grade | |
| Lead Style | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Response Time | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating | |
| Weight |

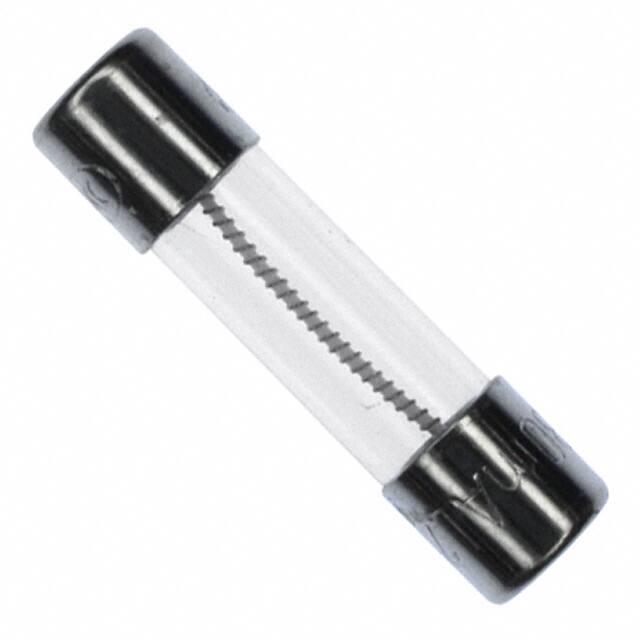

The Schurter 0034.3115 is a 5x20mm cartridge glass fuse with a time-lag (slow blow) characteristic. It is rated for 630mA at 250VAC and has a breaking capacity of 35A at 250VAC. The fuse is designed for primary protection in electronic equipment and complies with IEC 60127-2, UL 248-14, and CSA22.2 No. 248.14 standards. It is also suitable for use in audio/video and ICT equipment per IEC/UL 62368-1.
The fuse features a glass tube with nickel-plated copper alloy endcaps and weighs approximately 1 gram. It operates over a temperature range of -55°C to 125°C and has a melting I²t of 4.35 A²s. The 5x20mm package requires a holder for mounting.
Approvals include CCC, cURus, VDE, and additional certifications such as UL, CQC, and METI are noted in the datasheet. The fuse is classified as RoHS3 compliant, MSL 1, and REACH unaffected, though these compliance statuses are unverified in the source data.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.68 | $0.68 |
| 10+ | $0.59 | $0.59 |
| 50+ | $0.51 | $0.51 |
| 100+ | $0.47 | $0.47 |
| 250+ | $0.43 | $0.43 |
| 500+ | $0.40 | $0.40 |
| 1,000+ | $0.37 | $0.37 |
| 2,000+ | $0.36 | $0.36 |
| 5,000+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 630 mA (0.63 A).
The voltage rating is 250 VAC.
The breaking capacity is 35 A at 250 VAC.
The response time is slow blow (time-lag T).
The package is a 5mm x 20mm cartridge (0.205" Dia x 0.787" L).
The melting I²t is 4.35 A²s.
The operating temperature range is -55°C to 125°C.
