| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
70 pcs
|
70 pcs | On Request | 10 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Body Material | |
| Breaking Capacity @ Rated Voltage | |
| Climatic Category | |
| Current Rating (Amps) | |
| Fuse Type | |
| MSL (Moisture Sensitivity Level) | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Response Time | |
| Storage Temperature | |
| Storage Temperature Range | |
| Tape & Reel | |
| Terminal Material | |
| Unit Weight | |
| Voltage Rating |

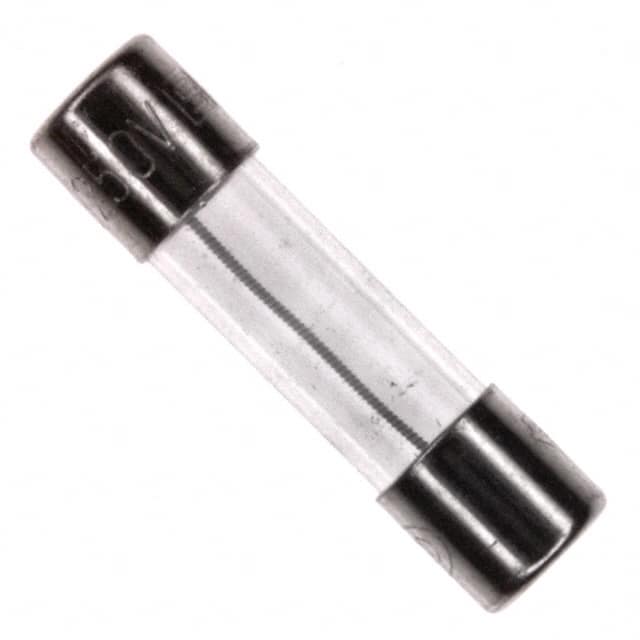

Schurter 0034.3108 is a miniature glass cartridge fuse from the FST 5x20 series, designed for primary protection in equipment. It offers a current rating of 125mA at 250VAC with a slow blow (time-lag) response characteristic, suitable for applications with inrush currents. The breaking capacity is 35A at rated voltage.
The fuse is housed in a 5mm x 20mm glass tube with nickel-plated copper alloy endcaps. It requires a fuse holder for mounting and operates over a temperature range of -55°C to 125°C. The climatic category is 55/125/21 per IEC 60068-1. Melting I²t is 0.064 A²s.
This fuse carries approvals from CCC, cURus, and VDE. It is RoHS3 compliant, REACH unaffected, and rated MSL 1. Storage conditions are 0°C to 60°C with maximum 70% relative humidity. The unit weight is 1 gram.
125 mA.
250 VAC.
35 A at 250 VAC.
Slow blow (time-lag).
5mm x 20mm glass cartridge.
0.064 A²s.
CCC, cURus, and VDE.
