| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 10 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Climatic Category | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Industrial Grade | |
| Lead Style | |
| Material - Endcaps | |
| Material Tube | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Response Time | |
| Size | |
| Size / Dimension | |
| Storage Conditions | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating | |
| Weight |

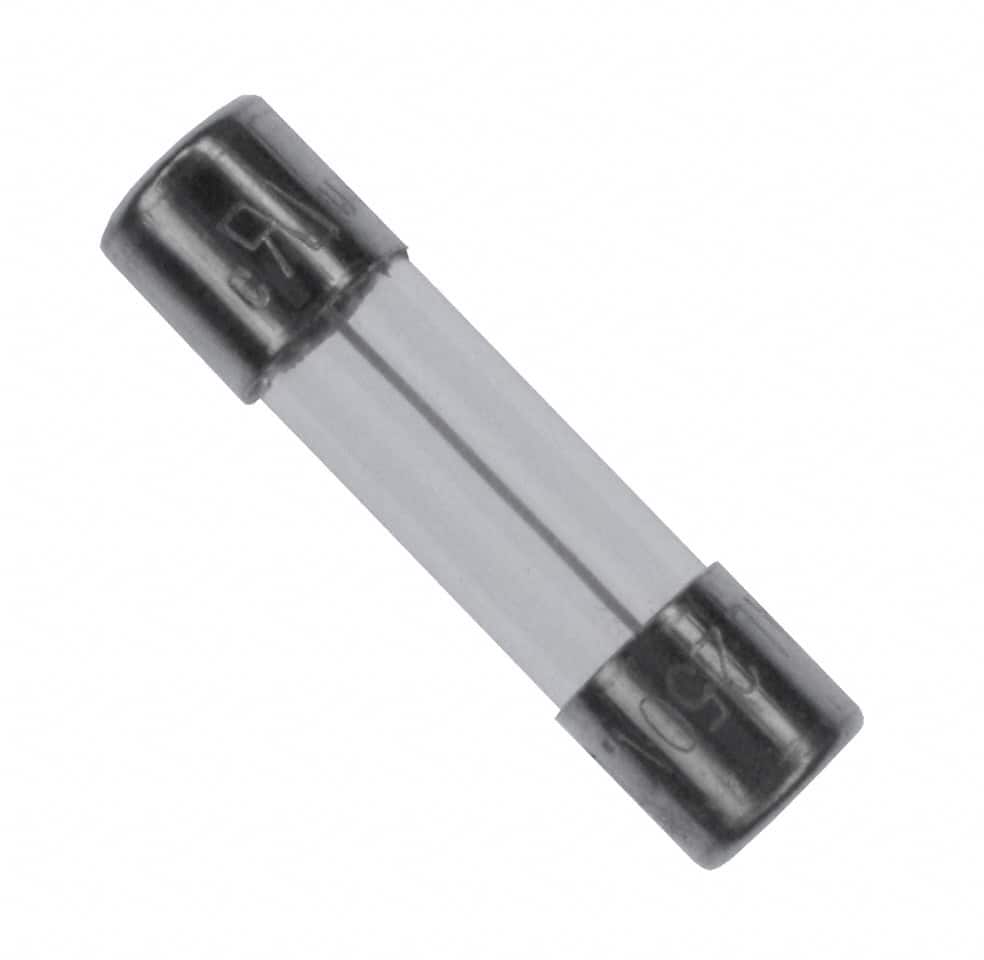

The Schurter 0034.3104 is a miniature glass tube fuse from the FST 5x20 series, designed for primary protection in equipment. It is rated at 50 mA and 250 VAC with a time-lag (slow-blow) characteristic, making it suitable for circuits with moderate inrush currents.
This fuse has a breaking capacity of 35 A at 250 VAC and a melting I²t of 0.0363 A²s. It operates over an ambient temperature range of -55°C to 125°C and is classified under climatic category 55/125/21 per IEC 60068-1.
The fuse is housed in a 5mm x 20mm glass tube with nickel-plated copper alloy endcaps. It requires a holder for mounting and weighs approximately 1 g. Storage conditions are 0°C to 60°C with maximum 70% relative humidity.
Approvals include CCC, cURus, and VDE, indicating compliance with international safety standards for primary protection in equipment.
The current rating is 50 mA.
The voltage rating is 250 VAC.
The breaking capacity is 35 A at 250 VAC.
It is a time-lag (slow-blow) fuse.
The fuse is a 5mm x 20mm glass cartridge.
