| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 10 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Climatic Category | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Response Time | |
| Storage Temperature | |
| Tape & Reel | |
| Terminal Material | |
| Termination Style | |
| Voltage Rating | |
| Weight |

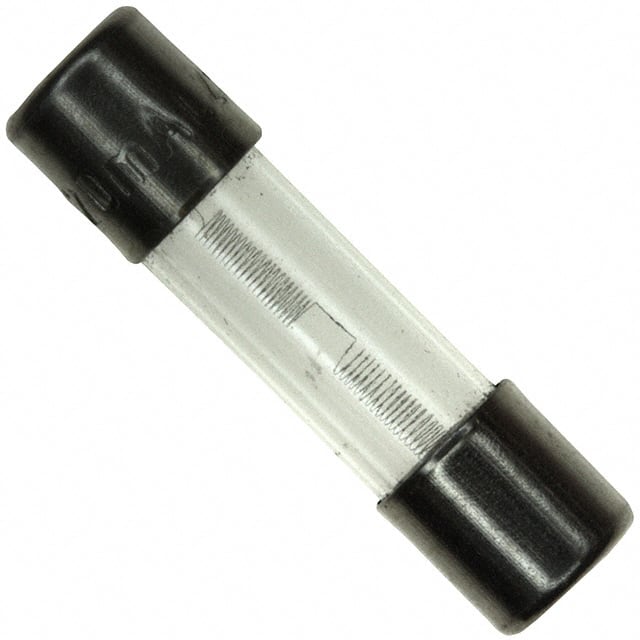

The Schurter 0034.3101 is a miniature glass tube fuse from the FST 5x20 series, designed for primary protection in equipment. It is rated for 20 mA at 250 VAC and features a time-lag T (slow-blow) characteristic, making it suitable for applications with inrush currents.
The fuse has a breaking capacity of 35 A at rated voltage and a melting I²t of 0.0012 A²s. It operates over a temperature range of -55°C to 125°C and is classified under climatic category 55/125/21 per IEC 60068-1.
The 5x20 mm glass body has nickel-plated copper alloy endcaps and requires a holder for mounting. The unit weight is 1 g. Storage conditions are 0°C to 60°C with a maximum relative humidity of 70%.
The current rating is 20 mA.
The voltage rating is 250 VAC.
The breaking capacity is 35 A at rated voltage.
It is a time-lag T (slow-blow) fuse.
The package is 5 mm x 20 mm (0.205" Dia x 0.787" L).
The operating temperature range is -55°C to 125°C.
The melting I²t is 0.0012 A²s.
