| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 10 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| CE | |
| China RoHS | |
| Climatic Category | |
| Current Rating | |
| Current Rating (Amps) | |
| Endcap Material | |
| Fuse Type | |
| Industrial Grade | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Response Time | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Tube Material | |
| UKCA | |
| Voltage Rating | |
| Weight |

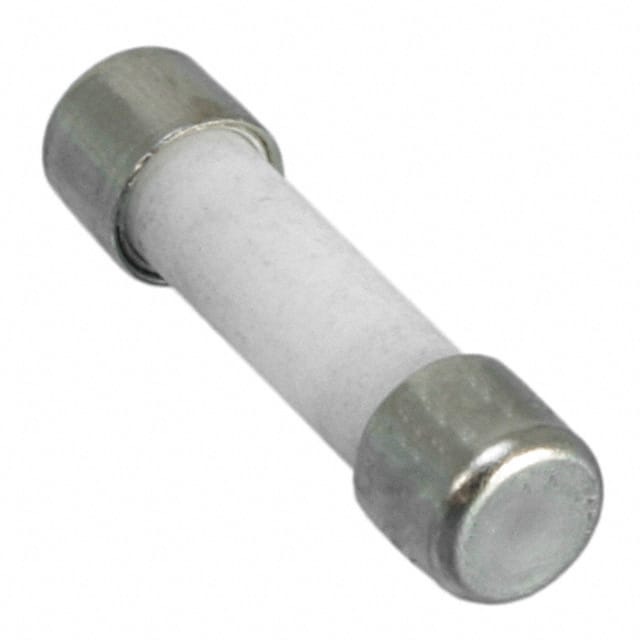

The Schurter Inc. 0034.0911 is a 5x20mm ceramic tube fuse rated for 10A at 250VAC. It features a super-quick-acting FF characteristic, providing fast overcurrent protection for sensitive circuits. The fuse has a high breaking capacity of 1.5kA at rated voltage, suitable for applications requiring robust fault current interruption.
The fuse is constructed with a ceramic tube and nickel-plated copper alloy endcaps. It requires a holder for mounting. The operating temperature range is -40°C to 85°C, with storage conditions of 0°C to 60°C and maximum 70% relative humidity. The unit weight is 1.19g.
This component is suitable for applications per IEC/UL 62368-1 for audio/video, information and communication technology equipment safety. It carries CE, UKCA, RoHS3, REACH, and China RoHS compliance markings.
The 0034.0911 fuse is rated for 10A.
The voltage rating is 250VAC.
The breaking capacity is 1.5kA at rated voltage.
The fuse has a super-quick-acting FF characteristic.
The fuse is in a 5mm x 20mm cartridge package.
The operating temperature range is -40°C to 85°C.
The fuse is RoHS3, REACH, CE, UKCA, and China RoHS compliant.
