| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Constant Torque Ratio | |
| Corrosion Resistance | |
| Division 2 Rating | |
| Efficiency Level | |
| Enclosure Type | |
| Enclosure Type IEC | |
| Explosion Proof Rating | |
| Frame Size | |
| Frequency | |
| Function | |
| Insulation Class | |
| Marine Duty Rating | |
| Mounting Orientation | |
| Mounting Type | |
| Output Power | |
| Output Rpm | |
| Power | |
| RPM | |
| Shaft Keyway Diameter | |
| Type | |
| Variable Torque Ratio | |
| Vfd Operation Capability | |
| Vibration Limit | |
| Voltage |

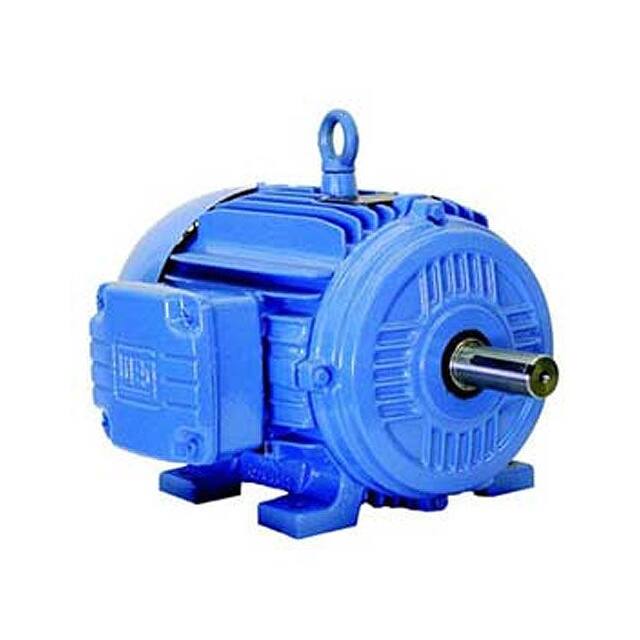

The WEG 00318ET3E182TC-W22 is a 3 HP, 3-phase AC motor designed for general purpose industrial applications. It operates at 1760 RPM and features a Totally Enclosed Fan Cooled (TEFC) enclosure, providing IP55 protection.
This motor complies with NEMA Premium efficiency standards and is rated for 230/460//380V. It is suitable for VFD operation with variable torque ratios up to 1000:1 and constant torque ratios up to 20:1. The motor has a cast iron frame for superior mechanical strength and heat dissipation, and features a C-face mounting provision with a base.
Additional features include CSA certification for Division 2 hazardous locations, Class 1 Div 2 and Class 2 Div 2 explosion-proof ratings, and a Class F inverter-rated insulation system. The optimized ventilation system ensures cooler operation and extended life, while the exclusive WEG painting system provides excellent corrosion resistance.
It is balanced to 0.08 inches per second vibration limits and offers F1 mounting as standard, convertible to F2. The motor is dual-rated for 60/50Hz operation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The motor has an output power of 3 HP and 2.2 kW.
The motor operates at 1760 RPM.
It features a TEFC (Totally Enclosed Fan Cooled) enclosure with an IEC rating of IP55.
The motor is dual rated for 230/460//380 Volts.
Yes, it complies with the NEMA Premium efficiency level.
It is CSA Certified for Division 2, with Class 1 Div 2 ratings for Groups A, B, C, & D, and Class 2 Div 2 ratings for Groups F & G.
Yes, it is suitable for VFD operation as per NEMA MG1, with a variable torque ratio of 1000:1 and a constant torque ratio of 20:1.
