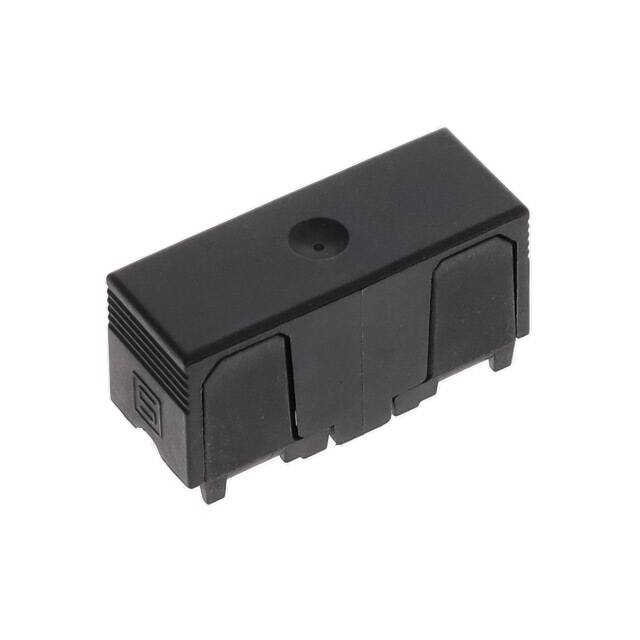

0031.8320 Schurter OGN pre-assembled open design fuseholder for 5x20mm fuses. Rated 16A at 500VAC/VDC (UL/CSA), surface mount solder terminals.
Mfr Part #:

0031.8320

Available from 1 distributors
Mfr Name: Schurter Inc.
Schurter Inc.
Schurter OGN pre-assembled open design fuseholder for 5x20mm fuses. Rated 16A at 500VAC/VDC (UL/CSA), surface mount solder terminals.
✓ Total Stock: 2,000 pcs

0031.8320 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0031.8320 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Breaking Capacity @ Rated Voltage
Contact Resistance
Current Rating (Amps)
Fuse Size
Fuse Type
Fuseholder Type
Industrial Grade
Insulation Resistance
Melting I²t
Mounting Type
Operating Temperature
Response Time
SVHC Present
Storage Conditions
Tape & Reel
Termination Style
Voltage Rating
Weight
View Similar Products (0)

0031.8320 Description

Short technical summary and product information.

The Schurter OGN series 0031.8320 is an open design fuseholder pre-assembled for surface mount applications. It accepts standard 5x20mm fuse-links and is rated for 16A at 500VAC/VDC (UL/CSA) or 10/16A at 500VAC (VDE). The fuseholder supports a power acceptance of 4W at 16A (Ta 23°C) with appropriate derating when covers are used.



Designed for fully automated PCB assembly, the OGN fuseholder is reflow solder capable (lead-free profile 245°C / max 30 sec) and is available in blister tape packaging. The socket and cover are molded from thermoplastic UL 94V-0 rated material, with tin-plated copper alloy terminals ensuring reliable solder connections.



Electrical performance includes dielectric strength >3kV between live parts, contact resistance ≤10 mΩ, and insulation resistance ≥10 MΩ. The holder provides IP20 protection when a cover is installed. Operating temperature range is -40°C to 85°C, with storage conditions of 0°C to 60°C at max 70% relative humidity.



The OGN fuseholder meets glow wire requirements per IEC 60335-1 and is suitable for use in protection class I equipment per IEC 61140. It is approved under cURus and VDE standards.

0031.8320 Quick Information

Product Type: Fuseholder Assembly
Series: OGN
Canonical Name: Schurter OGN Pre-Assembled Open Design Fuseholder 5x20mm SMT 16A 500V
Subcategory: Open Design Fuseholder

0031.8320 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0031.8320 Features

  • Rated 16A at 500VAC/VDC (UL/CSA).
  • Accepts standard 5x20mm fuse-links.
  • Reflow-capable SMT solder terminals.
  • Thermoplastic UL 94V-0 socket and cover.
  • IP20 protection rating with cover installed.

0031.8320 Applications

  • Suitable for industrial equipment control circuits.
  • Used in household appliances requiring glow wire compliance.
  • Ideal for automated PCB assembly processes.
  • Applicable in protection class I equipment per IEC 61140.

0031.8320 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum current rating of the fuseholder?

The holder is rated for 16 A under UL/CSA and 10/16 A under VDE.

What voltage rating does this fuseholder support?

The holder supports 500 VAC/VDC (UL/CSA) and 500 VAC (VDE).

What size fuse does this holder accommodate?

It accepts standard 5 mm x 20 mm fuse-links.

What is the operating temperature range?

The admissible ambient temperature is -40°C to 85°C.

Is this fuseholder available in tape and reel packaging?

Yes, the OGN series is available with blister tape packaging for automated assembly.
