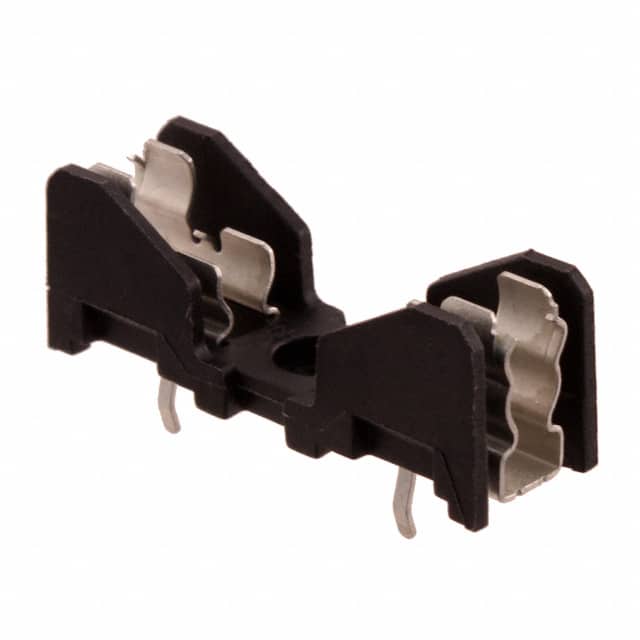

This Schurter OGD series open design fuseholder block accepts both 5mm x 20mm and 0.25" x 1.26" (6.35mm x 32mm) cartridge fuses. Rated for 600 VAC (UL/CSA) and 16 A, or 250/500 VAC (VDE) and 10 A, with a power acceptance of 4 W at 10 A and 23 °C (2.5 W with transparent cover). The block offers IP20 protection with its cover and is suitable for Class I equipment per IEC 61140.
Designed for through-hole PCB mounting with PC pin terminals, it provides shock-safe category PC1 protection. The socket and cover are molded from black thermoplastic rated UL 94V-0, and the tin-plated copper alloy terminals ensure reliable soldering. The device operates over an ambient temperature range of -40 °C to 85 °C and stores at 0 °C to 60 °C, max. 70% r.h.
Ideal for three-phase equipment (400 VAC) and other applications requiring a compact, high-voltage fuseholder with dual fuse size compatibility.
The UL/CSA rating is 600 V and 16 A. The VDE rating is 250/500 VAC and 10 A.
It accepts 0.25" Dia x 1.26" L (6.35mm x 32mm) and 5mm x 20mm cartridge fuses.
Through-hole mounting with PC pin (solder) termination in a horizontal orientation.
