Mfr Part #:

0031.8225

Available from 2 distributors

Mfr Name: Schurter Inc.

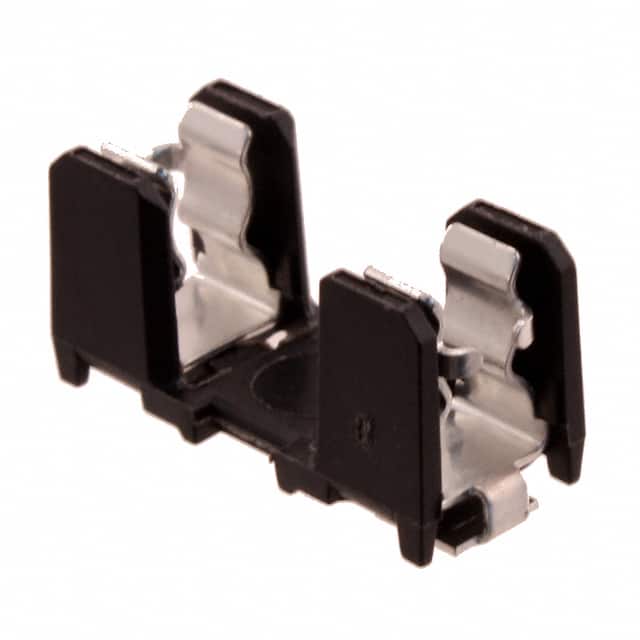

Surface mount fuseholder block for 5x20mm cartridge fuses. Rated 500VAC/VDC and 10A (VDE) or 16A (UL/CSA).

✓ Total Stock: 5,072 pcs

0031.8225 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	5,000 pcs On Request	5000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Partservice ✓ Non-Authorised Inventory information	72 pcs On Request	72 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

0031.8225 Description

Short technical summary and product information.

The Schurter 0031.8225 is a surface mount fuseholder block designed for 5x20mm cartridge fuses. It features J-Lead terminals for reliable SMD soldering and is rated for 500VAC (VDE) and 500VAC/VDC (UL/CSA) with current ratings of 10A (VDE) and 16A (UL/CSA).

The fuseholder accepts up to 4W power dissipation at 16A (Ta 23°C) and meets glow wire requirements per IEC 60335-1 for unattended appliances. It offers IP20 protection with cover and is suitable for protection class I equipment.

Constructed with thermoplastic UL 94V-0 socket and cover, and tin-plated copper alloy terminals, the unit has a contact resistance of ≤10 mΩ at 100 mA. Dielectric strength exceeds 3 kV between live parts, and impulse withstand voltage is >4 kV. Operating temperature range is -40°C to 85°C.

The component is reflow solderable (lead-free) per JEDEC J-STD-020E, with a recommended profile of 245°C max for 30 seconds. Climatic category is 40/085/21 per IEC 60068-1.

0031.8225 Quick Information

Product Type: Fuseholder Block

Series: OGN

Canonical Name: Schurter 0031.8225 Fuseholder Block for 5x20mm Cartridge Fuse, Surface Mount, 500V, 10A

Subcategory: Cartridge Fuseholder

0031.8225 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 70

REACH Status: REACH Unaffected

Lead Free: No

0031.8225 Features

Surface mount J-Lead terminals for easy assembly.
Rated for 500VAC/VDC operation.
Accepts 5x20mm cartridge fuses.
Compliant with IEC 60335-1 glow wire requirements.
Reflow solderable lead-free up to 245°C.

0031.8225 Applications

Ideal for industrial equipment and household appliances.
Suitable for fully automated PCB assembly.
Used in control electronics requiring fuse protection.
Designed for unattended appliances per IEC 60335-1.

0031.8225 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the current rating of the Schurter 0031.8225 fuseholder?

The current rating is 10A (VDE) and 16A (UL/CSA).

What is the voltage rating of the 0031.8225?

500VAC (VDE) and 500VAC/VDC (UL/CSA).

What type of fuse does this holder accept?

It accepts 5x20mm cartridge fuses.

What is the mounting type and termination style?

Surface mount with J-Lead terminals.

What is the operating temperature range?

-40°C to 85°C.

Is this fuseholder suitable for reflow soldering?

Yes, it supports reflow soldering (lead-free) at 245°C for max 30 seconds per JEDEC J-STD-020E.

What approvals does the 0031.8225 hold?

VDE, UL/CSA, and IEC 60335-1 glow wire for unattended use.

Category	Fuseholders
Manufacturer Name	Schurter Inc.
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Resistance	≤ 10 mΩ at 100 mA
Current Rating	10 A
Current Rating (Amps)	10 A
For Use With	5mm x 20mm
Fuse Size	0.197" Dia x 0.787" L (5mm x 20mm)
Fuse Type	Cartridge
Fuseholder Type	Block
Halogen Free	No
Industrial Grade	Yes
Insulation Resistance	≥ 10 MΩ at 500 VDC
Lead Style	J-Lead
Mounting Type	Surface Mount
Number of Circuits	1
SVHC Present	Not Present
Storage Conditions	0 °C to 60 °C, max. 70% r.h.
Storage Temperature	0°C ~ 60°C
Tape & Reel	Yes
Termination Style	J-Lead
Voltage	500V
Voltage Rating	500V
