| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
46 pcs
|
46 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Ambient Temperature Range | |
| Climatic Category | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Strength | |
| Flammability Rating | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Impulse Withstand Voltage | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Overvoltage Category | |
| Packaging Type | |
| Pollution Degree | |
| Rated Power Acceptance | |
| Rated Voltage | |
| Shock Safe Category | |
| Solderability | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Unit Weight | |
| Voltage |

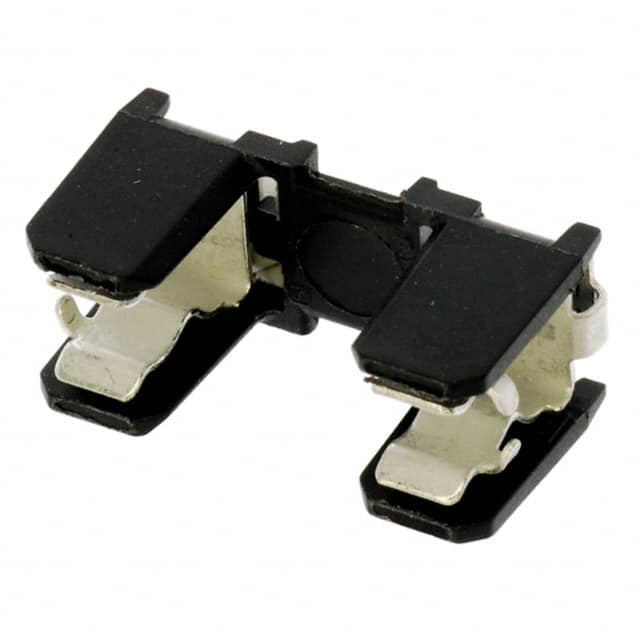

The Schurter 0031.8221 is a surface mount fuseholder block from the OGN series, designed for 5mm x 20mm cartridge fuses. It features J-Lead terminals for automated PCB assembly and is rated for 500VAC (VDE) and 500VAC/VDC (UL/CSA). Current rating is 10A per VDE and 16A per UL/CSA. Power acceptance is 4W at 16A (VDE) at 23°C, with derating when a cover is used. The block is made from UL 94V-0 thermoplastic and is reflow solderable per JEDEC J-STD-020E up to 245°C for 30 seconds. It is suitable for industrial equipment, household appliances, and control electronics. Environmental ratings include an ambient temperature range of -40°C to 85°C and climatic category 40/085/21. Available packaging includes blister tape for automated assembly.
10A per VDE, 16A per UL/CSA.
500VAC (VDE) and 500VAC/VDC (UL/CSA).
It accepts 5mm x 20mm cartridge fuses.
Surface mount with J-Lead terminals.
-40°C to 85°C.
4W at 16A (VDE) at 23°C, with derating when a cover is used.
Yes, VDE and UL/CSA approved.
