| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
109 pcs
|
109 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 20 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Climatic Category | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Cover Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Current Rating (UL/CSA) | |
| Dielectric Strength | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Design | |
| Fuseholder Type | |
| Impulse Withstand Voltage | |
| Industrial Grade | |
| Ingress Protection | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Orientation | |
| Overvoltage Category | |
| Pollution Degree | |
| Protection Class | |
| Rated Power Acceptance | |
| Socket Material | |
| Solderability | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage | |
| Voltage Rating | |
| Weight |

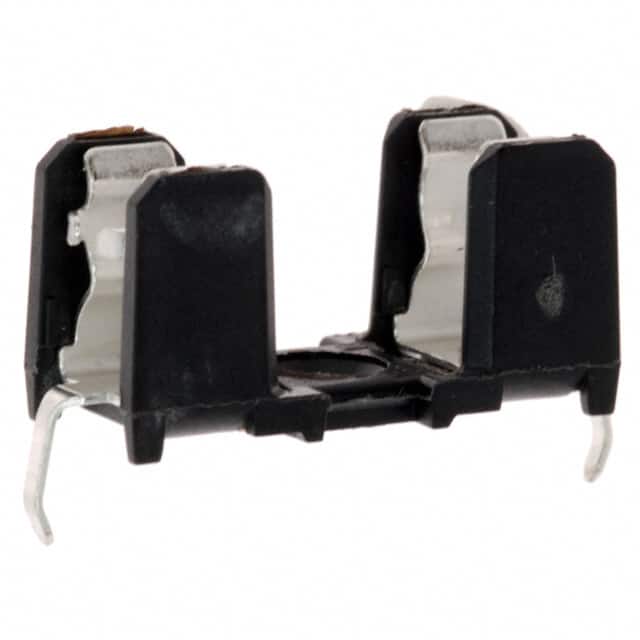

The Schurter Inc. 0031.8201 is an open design fuseholder block from the OGN series, designed for 5x20mm cartridge fuses. It is rated for 10A continuous current (16A UL/CSA) at 500VAC/VDC with a power acceptance of 4W. The holder features through hole mounting with PC pin termination and a horizontal orientation.
Constructed with a copper alloy contact material finished in tin, the socket and cover are made from thermoplastic rated UL 94V-0. The holder provides an IP20 degree of protection when used with a cover. It is suitable for use in protection class I equipment per IEC 61140.
Electrical characteristics include a contact resistance of ≤10 mΩ, dielectric strength >3 kV, insulation resistance ≥10 MΩ, and impulse withstand voltage >4 kV. The operating temperature range is -40°C to 85°C with a storage temperature of 0°C to 60°C. The climatic category is 40/085/21 per IEC 60068-1.
The fuseholder is rated for 10A continuous current (16A UL/CSA).
The voltage rating is 500VAC/VDC.
It accepts 5x20mm cartridge fuses.
Through hole mounting with PC pin termination, horizontal orientation.
-40°C to 85°C.
RoHS3 compliant (unverified).
