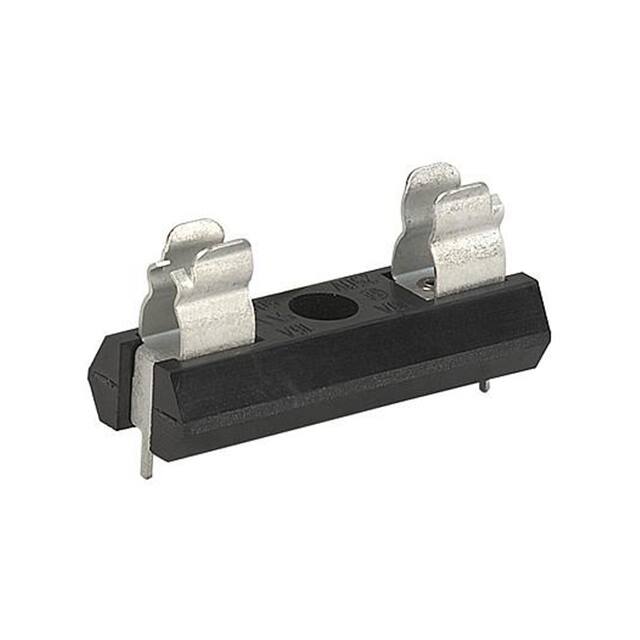

This is a through hole fuseholder block from Schurter, designed for 3AG (1/4" x 1-1/4") cartridge fuses. It features a horizontal orientation and PC pin termination for PCB mounting.
Electrical ratings include 16A current (UL) and 500VAC voltage (UL). The holder accepts up to 2.5W power dissipation (IEC) at 23°C ambient. Contact resistance is ≤10 mΩ, dielectric strength >3 kV, and insulation resistance >10 MΩ.
The block is made with copper alloy terminals tin-plated. It operates in -40°C to 85°C ambient and can be stored at 0°C to 60°C with max 70% r.h. It is solderable at 245°C/3 sec and resistant to soldering heat at 260°C/10 sec.
The unit weight is 7.23 g. It is suitable for industrial applications requiring reliable fuse protection in PCB assemblies.
16 A (UL).
500 VAC (UL).
3AG, 1/4" x 1-1/4" (SFE-20) cartridge fuses.
Through hole with PC pin termination.
-40°C to 85°C.
≤10 mΩ at 100 mA.
Listed as RoHS3 compliant (unverified).
