| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17,250 pcs
|
17250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Admissible Ambient Temperature | |
| Climatic Category | |
| Compatible Fuse-Links | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Strength | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Impulse Withstand Voltage | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Protection Class | |
| Rated Current | |
| Rated Voltage | |
| Socket Material | |
| Solder Method | |
| Soldering Methods | |
| Soldering Profile | |
| Storage Conditions | |
| Storage Temperature | |
| Tape & Reel | |
| Terminal Material | |
| Termination Style | |
| Unit Weight | |
| Voltage | |
| Voltage Rating |

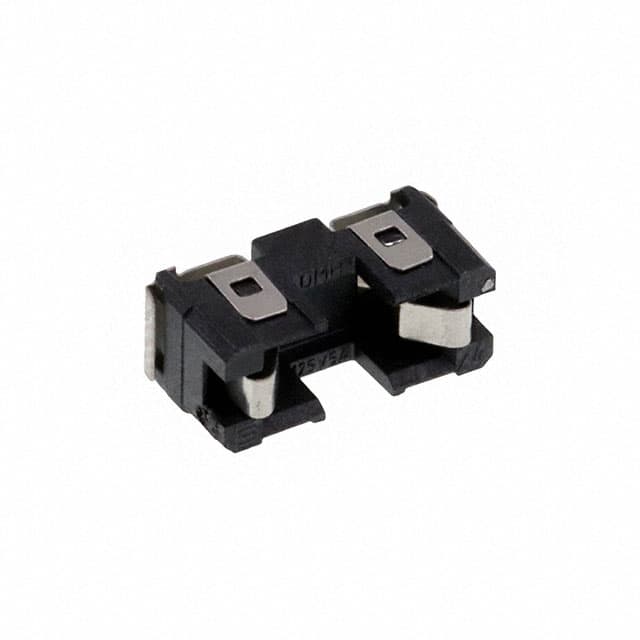

This Schurter OMH 125 series fuseholder is designed for surface mount applications. It accepts cartridge fuse-links of types OMF 63, OMF 125, and OMT 125. The holder is rated for 5A current and 125V voltage (UL/CSA). It features J-lead terminals for SMD soldering and is made with a thermoplastic socket (UL 94V-0) and tin-plated copper alloy terminals. The contact resistance is ≤10 mΩ, dielectric strength >3 kV, and insulation resistance ≥10 MΩ. It can operate in ambient temperatures from -40°C to 85°C and is suitable for reflow soldering up to 260°C. The unit weight is 3.9 g. This fuseholder is applicable in circuit protection designs requiring a compact, surface-mountable solution.
5 A (UL/CSA).
125 V (UL/CSA).
Surface mount with J-lead terminals.
OMF 63, OMF 125, and OMT 125.
-40°C to 85°C.
Reflow (lead-free) soldering with a profile up to 260°C.
