| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,007 pcs
|
2007 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
84 pcs
|
84 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
51 pcs
|
51 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Admissible Ambient Temperature | |
| CSA C22.2 No. 4248.1 | |
| Climatic Category | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Strength | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| IEC 60127-6 | |
| IEC 60335-1 | |
| IEC/UL 62368-1 | |
| Impulse Withstand Voltage | |
| Insulation Resistance | |
| Material Socket | |
| Material: Terminals | |
| Mounting Type | |
| Number of Circuits | |
| Soldering Method | |
| Soldering Profile | |
| Storage Conditions | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| UL | |
| UL 4248-1 | |
| Unit Weight | |
| Voltage | |
| Voltage Rating |

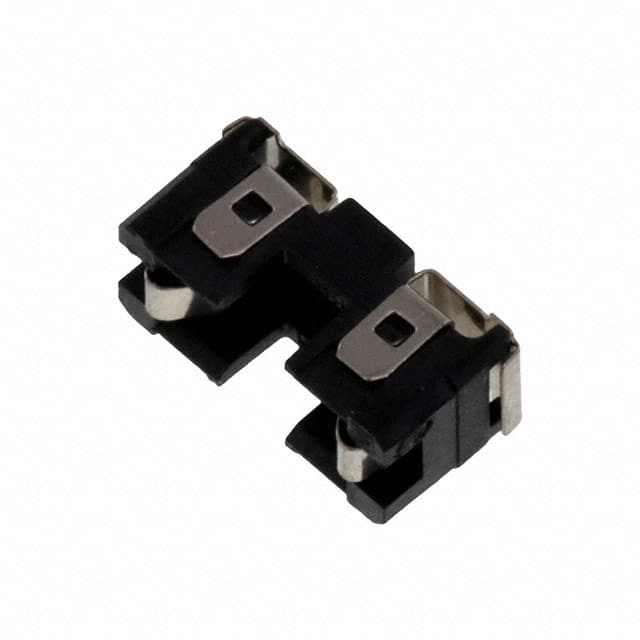

This Schurter Inc. 0031.7701.11 fuse holder is a surface mount component designed for cartridge fuse-links. It is rated for 125V and 5A according to UL/CSA standards. The holder features J-lead termination and a thermoplastic socket (UL 94V-0, black) with tin-plated copper alloy contacts.
Key electrical characteristics include a contact resistance of ≤10 mΩ, dielectric strength >3 kV, impulse withstand voltage >4 kV, and insulation resistance ≥10 MΩ. It operates over an ambient temperature range of -40°C to 85°C and is classified under climatic category 40/085/21 per IEC 60068-1.
The holder is designed for reflow soldering (lead-free, 260°C profile) and complies with IEC 60127-6, UL 4248-1, CSA C22.2 no. 4248.1, and is suitable for applications per IEC/UL 62368-1 and IEC 60335-1. It is part of the OMH 125 series and weighs 3.9 g.
5 A.
125 V.
Surface mount.
J-Lead.
-40 °C to 85 °C.
0.291" L x 0.122" W x 0.102" H (7.39mm x 3.1mm x 2.59mm).
UL UR File Number E39328, designed according to IEC 60127-6, UL 4248-1, CSA C22.2 no. 4248.1.
