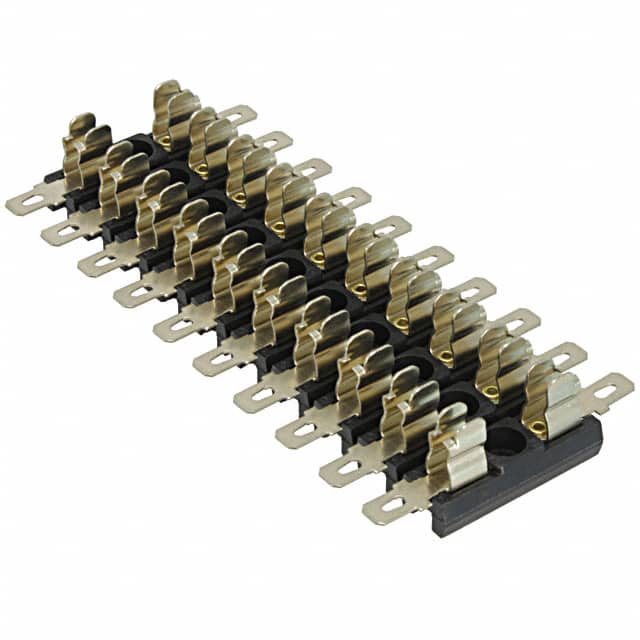

0031.5010 Schurter 0031.5010 is a 10-circuit fuse block for 5x20mm cartridge fuses, rated 10A at 600VAC/DC, chassis mount with solder lug terminals.
Mfr Part #:

0031.5010

Available from 2 distributors
Mfr Name: Schurter Inc.
Schurter Inc.
Schurter 0031.5010 is a 10-circuit fuse block for 5x20mm cartridge fuses, rated 10A at 600VAC/DC, chassis mount with solder lug terminals.
✓ Total Stock: 18 pcs

0031.5010 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0031.5010 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Material
Contact Resistance
Current Rating
Current Rating (Amps)
For Use With
Fuse Size
Fuse Type
Fuseholder Type
Insulation Resistance
Mounting Type
Number of Circuits
Storage Conditions
Tape & Reel
Termination Style
Voltage
Voltage Rating
View Similar Products (0)

0031.5010 Description

Short technical summary and product information.

The Schurter 0031.5010 is an open-design fuseholder block designed for 5x20mm cartridge fuses. It accommodates up to 10 circuits in a single block, with a current rating of 10A and a voltage rating of 600VAC/DC. The block is chassis-mounted and features solder lug terminals for secure connections. The socket is made of black thermoplastic (UL 94V-0), and the cover is transparent thermoplastic (UL 94V-0). Terminals are copper alloy with tin plating. The unit weight is 3.62 g. The fuseholder is designed for use in industrial environments and has approvals from independent testing bodies according to national and international standards.

0031.5010 Quick Information

Product Type: Fuseholder Block
Series: UH
Canonical Name: Schurter 0031.5010 Fuseholder Block for 5x20mm Cartridge Fuse, 10A, 600V, Chassis Mount, Solder Lug
Subcategory: Fuse Block

0031.5010 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0031.5010 Features

  • 10-circuit fuse block for 5x20mm cartridge fuses.
  • Rated 10A at 600VAC/DC operation.
  • Chassis mount with solder lug terminals.
  • Thermoplastic socket and cover, UL 94V-0 rated.
  • Contact resistance ≤10 mΩ per IEC 60127-6.

0031.5010 Applications

  • Industrial control panel circuit protection.
  • Power distribution unit fuse mounting.
  • Equipment requiring multiple 5x20mm fuse positions.
  • High-voltage DC circuit protection up to 600V.

0031.5010 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the Schurter 0031.5010 fuseholder?

The current rating is 10 A (UL/CSA).

What is the voltage rating of the Schurter 0031.5010 fuseholder?

The voltage rating is 600 VAC/DC.

What type of fuse does the 0031.5010 accept?

It accepts 5mm x 20mm cartridge fuses.

How many circuits does the 0031.5010 fuse block support?

It supports 10 circuits.

What is the mounting type for the 0031.5010?

Chassis mount with screw/rivet attachment.

What is the termination style of the 0031.5010?

Solder lug termination.

What is the operating temperature range for the 0031.5010?

-40 °C to 85 °C.
