| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Climatic Category | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Degree of Protection | |
| Dielectric Strength | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Housing Material | |
| Impulse Withstand Voltage | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature Range | |
| Orientation | |
| Overvoltage Category | |
| Pollution Degree | |
| Protection Class | |
| Rated Power Acceptance | |
| Resistance to Soldering Heat | |
| Shock Safe Category | |
| Solderability | |
| Storage Temperature | |
| Storage Temperature Range | |
| Tape & Reel | |
| Termination Style | |
| Voltage | |
| Voltage Rating |

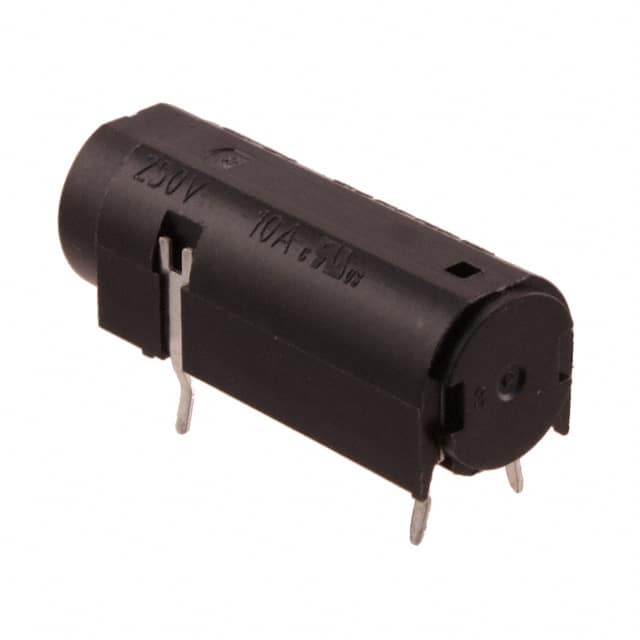

The Schurter 0031.3981 is a shock-safe fuseholder from the FBS2 series, designed to accept 5x20mm cartridge fuses. It is rated for 250VAC operation with current ratings of 10A under UL/CSA standards and 6.3A under VDE standards. The holder features a horizontal orientation and through hole mounting with PC pin terminals for soldering directly to a printed circuit board.
The fuseholder offers a rated power acceptance of 1.6W at 23°C ambient for IEC applications. It provides IP40 degree of protection and is suitable for appliances with protection class I according to IEC 61140. The housing is made of black thermoplastic rated UL 94V-0, and the contacts are copper alloy with tin plating.
Electrical specifications include a contact resistance of less than 10 mOhm, dielectric strength greater than 3 kV, and an impulse withstand voltage exceeding 4 kV. The operating temperature range spans from -40°C to 85°C. The shock-safe category PC3 ensures finger protection from live parts when the fuse carrier is removed.
It accepts 5 mm x 20 mm (0.197" Dia x 0.787" L) cartridge fuses.
The current rating is 10 A (UL/CSA) and 6.3 A (VDE).
The voltage rating is 250 VAC.
It is a through hole mounting type with PC pin termination.
The operating temperature range is -40°C to 85°C.
Yes, the housing material is thermoplastic, black, rated UL 94V-0.
