| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Climatic Category | |
| Compatible Fuse Size | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Current Rating (VDE) | |
| Dielectric Strength | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Housing Material | |
| Impulse Withstand Voltage | |
| Industrial Grade | |
| Ingress Protection (IP) Rating | |
| Insulation Resistance | |
| Lead Style | |
| Medical Grade | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature Range | |
| Overvoltage Category | |
| Panel Thickness | |
| Pollution Degree | |
| Power Dissipation | |
| Protection Class | |
| Resistance to Soldering Heat | |
| Shock Safe Category | |
| Solderability | |
| Storage Temperature Range | |
| Tape & Reel | |
| Terminal Material | |
| Termination Style | |
| Torque Rating | |
| Voltage | |
| Voltage Rating |

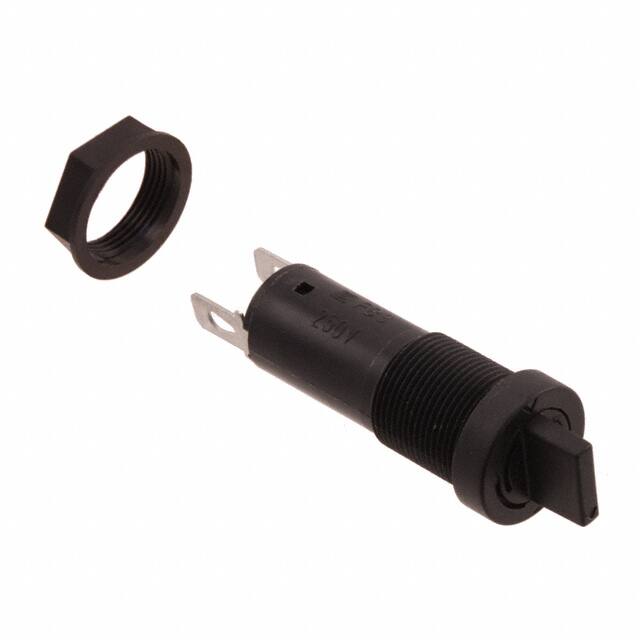

The Schurter 0031.3911 is a shock-safe panel mount fuseholder designed for 5x20mm cartridge fuses. It features a captive fuse carrier with slotted or fingergrip options (specific variant not specified). The holder is rated for 250VAC and carries a current rating of 10A per UL/CSA and 6.3A per VDE. It accepts a maximum power dissipation of 1.6W at 6.3A and 23°C ambient temperature.
The fuseholder offers IP40 protection and is suitable for appliances with protection class I. It has a wide operating temperature range of -40°C to 85°C and a climatic category of 40/085/21. The housing is made of thermoplastic with UL 94V-0 flammability rating, and terminals are copper alloy with tin plating. Contact resistance is ≤10 mΩ, dielectric strength >3 kV, and impulse withstand voltage >4 kV.
Mounting is panel mount from the front side with a fixing nut, and termination is via solder lugs or quick-connect 4.8x0.5mm. The maximum panel thickness is 7mm, and the fixing nut torque is 1.2 Nm. The holder is suitable for use in medical equipment and other applications requiring a shock-safe fuseholder with PC3 category.
The fuseholder is rated for 10A (UL/CSA) and 6.3A (VDE) at 250VAC.
The voltage rating is 250VAC.
It accepts 5mm x 20mm cartridge fuses.
It is a panel mount fuseholder.
The operating temperature range is -40°C to 85°C.
The ingress protection rating is IP40.
It meets shock-safe category PC3.
