| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Admissible Ambient Temperature | |
| Automotive Grade | |
| Climatic Category | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Degree of Protection | |
| Dielectric Strength | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Impulse Withstand Voltage | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Style | |
| Material Socket | |
| Material: Terminals | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Circuits | |
| Orientation | |
| Overvoltage Category | |
| Pollution Degree | |
| Protection Class | |
| Rated Current (UL/CSA) | |
| Rated Current (VDE) | |
| Rated Power Acceptance (IEC) | |
| Rated Voltage (UL) | |
| Rated Voltage (VDE) | |
| Resistance to Soldering Heat | |
| Shock Safe Category | |
| Solderability | |
| Soldering Methods | |
| Storage Conditions | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Unit Weight | |
| Voltage | |
| Voltage Rating |

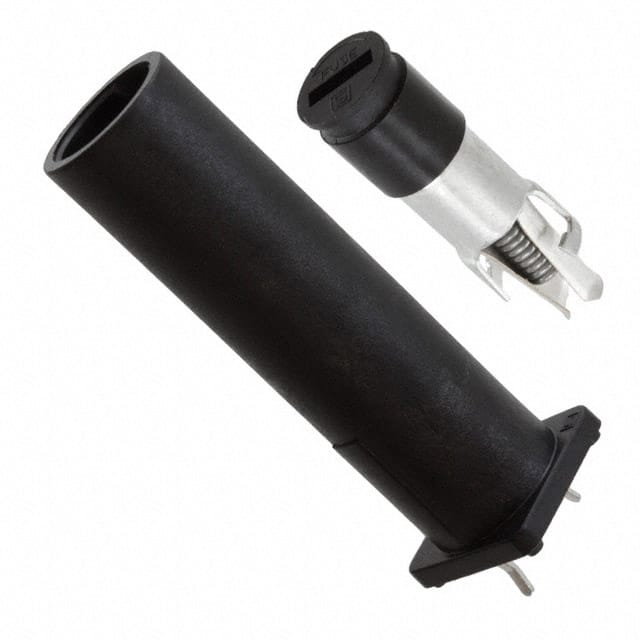

The Schurter 0031.3821 is a shock-safe fuseholder from the FAC series, designed for 5x20mm cartridge fuses. It features a vertical orientation with through-hole PC pin termination for direct PCB mounting.
Electrical ratings include 16A at 600VAC/VDC (UL/CSA) and 10A at 250VAC (VDE). The holder accepts up to 3.2W power dissipation at 10A (IEC). It provides IP40 protection and is suitable for appliances with protection class I or II per IEC 61140.
The socket is molded from black thermoplastic rated UL 94V-0, with tin-plated copper alloy terminals. It operates over -40°C to 85°C ambient temperature and meets climatic category 40/085/21 per IEC 60068-1.
The current rating is 16A (UL/CSA) and 10A (VDE).
It supports 250VAC (VDE) and 600VAC/VDC (UL).
It accepts 5mm x 20mm cartridge fuses.
It is a through-hole mount with PC pin termination, vertical orientation.
The admissible ambient temperature is -40°C to 85°C.
RoHS3 compliance is claimed but unverified.
