| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
89 pcs
|
89 pcs | On Request | 10 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Admissible Ambient Temperature | |
| Climatic Category | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Degree of Protection | |
| Dielectric Strength | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Impulse Withstand Voltage | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Socket | |
| Material: Terminals | |
| Mounting Type | |
| Number of Circuits | |
| Orientation | |
| Overvoltage Category | |
| Pollution Degree | |
| Protection Class | |
| Rated Current (UL/CSA) | |
| Rated Current (VDE) | |
| Rated Power Acceptance (IEC) | |
| Rated Voltage (UL) | |
| Rated Voltage (VDE) | |
| Resistance to Soldering Heat | |
| Solderability | |
| Soldering Method | |
| Storage Conditions | |
| Storage Temperature | |
| Termination Style | |
| Unit Weight | |
| Voltage | |
| Voltage Rating |

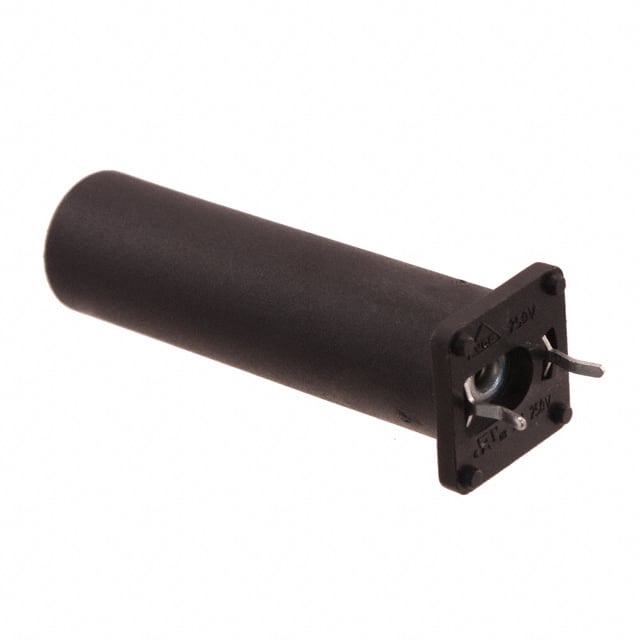

Schurter 0031.3804 is a shock-safe fuseholder designed for printed circuit board mounting. It accepts both 5x20mm and 1/4" x 1-1/4" (6.3x32mm) cartridge fuses, making it versatile for various overcurrent protection applications. The vertical orientation and PC pin termination allow for efficient PCB layout and wave soldering.
The fuseholder is rated for 16A at 400V (UL/CSA) and 10A at 250V (VDE), with a power acceptance of 3.2W at 10A. It features a thermoplastic socket with UL 94V-0 flammability rating and tin-plated copper alloy terminals for reliable electrical contact. The contact resistance is ≤10 mΩ, and dielectric strength exceeds 3 kV.
Designed for protection class I or II applications, the fuseholder offers an IP40 degree of protection and operates over a temperature range of -40°C to 85°C. It meets climatic category 40/085/21 per IEC 60068-1 and is suitable for wave soldering with a solderability of 235°C/2 sec and resistance to soldering heat of 260°C/10 sec.
This fuseholder is ideal for use in industrial controls, power supplies, and consumer electronics where reliable circuit protection is required. Its shock-safe design ensures safe fuse replacement under load conditions.
The fuseholder is rated for 16 A under UL/CSA and 10 A under VDE.
The fuseholder is rated for 400 V general, with VDE rating of 250 VAC and UL rating of 600 VAC/VDC.
It accepts 0.25" Dia x 1.26" L (6.35mm x 32mm) and 5mm x 20mm cartridge fuses.
It is a through hole mount component with PC pin termination.
The admissible ambient temperature range is -40 °C to 85 °C.
The fuseholder has an IP40 degree of protection.
Yes, it is listed as RoHS3 compliant, though this is unverified.
