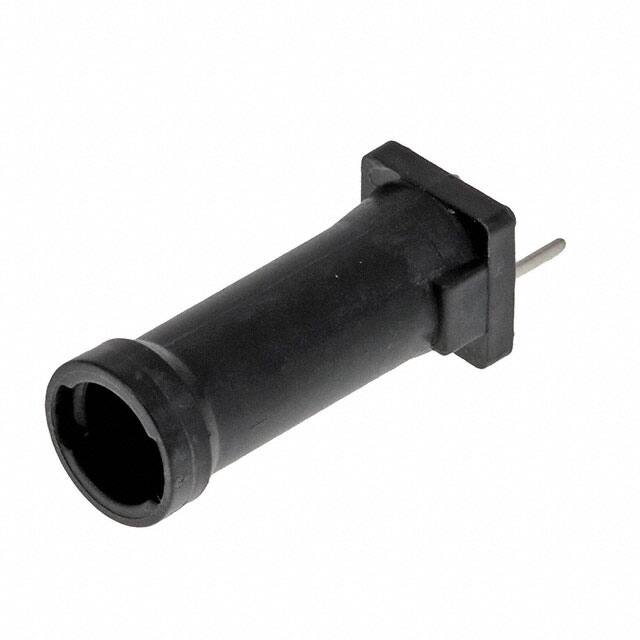

This Schurter Inc. 0031.3752 is a shock-safe fuse holder suitable for 5x20mm fuse links. It features PCB mounting with Solder THT terminals, making it ideal for integration into circuit boards.
The fuse holder provides a degree of protection rated at IP40, with an option for IP54 from the front side. It is designed to operate within an admissible ambient temperature range of -40 °C to 85 °C and meets Climatic Category 40/085/21.
Constructed with a thermoplastic socket and cap (UL 94V-0 rated), and tin-plated copper alloy terminals, this component is built for durability. It supports a rated voltage of 250 VAC and rated currents of 6.3 A (VDE) or 12 A (UL/CSA).
The fuse holder is designed for 5 x 20 mm fuse links.
This fuse holder is designed for PCB mounting.
The rated voltage is 250 VAC.
The rated current is 6.3 A according to VDE and 12 A according to UL/CSA.
The degree of protection is IP40, with an option for IP54 from the front side.
The admissible ambient temperature range is -40 °C to 85 °C.
The socket and cap are made of black thermoplastic, rated UL 94V-0.
