| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Current Rating (UL/CSA) | |
| Current Rating (VDE) | |
| Degree of Protection | |
| Dielectric Strength | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Housing Material | |
| Impulse Withstand Voltage | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature Range | |
| Orientation | |
| Overvoltage Category | |
| Pollution Degree | |
| Power Acceptance | |
| Protection Class | |
| Rated Voltage (UL/CSA) | |
| Rated Voltage (VDE) | |
| Resistance to Soldering Heat | |
| Shock Safe Category | |
| Solderability | |
| Storage Temperature | |
| Storage Temperature Range | |
| Tape & Reel | |
| Termination Style | |
| Unit Weight | |
| Voltage |

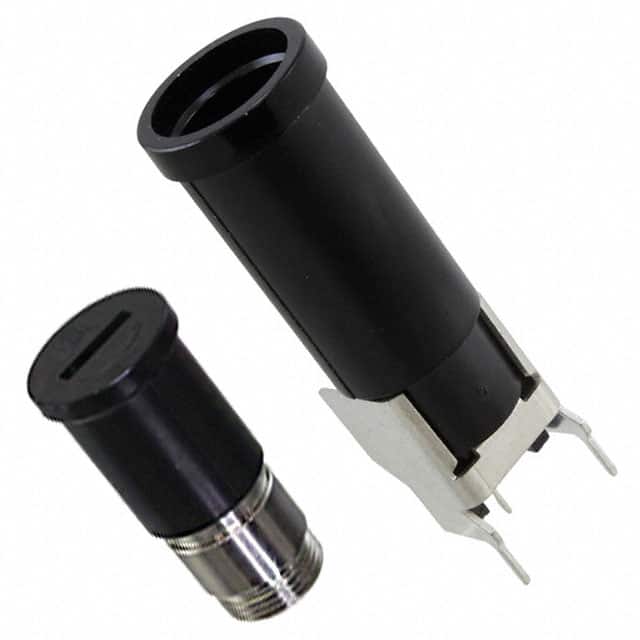

The Schurter 0031.2570 is a shock-safe fuseholder designed for high-performance circuit protection applications. It accepts both 5x20mm and 6.3x32mm (1/4" x 1-1/4") cartridge fuses, offering flexibility for various protection needs. The holder is rated for 600V 30A under UL/CSA standards and 250/500V 16A under VDE standards, with a rated power acceptance of 4W at 16A.
This fuseholder features a vertical orientation with through hole mounting and PC pin termination for reliable PCB integration. The housing is made of thermoplastic with UL 94V-0 flammability rating, and the terminals are tin-plated copper alloy. It provides IP40 degree of protection and is suitable for appliances with protection class I or II.
Key electrical characteristics include dielectric strength greater than 3 kV, impulse withstand voltage greater than 4 kV, and contact resistance less than or equal to 10 mΩ. The operating temperature range is -40°C to 85°C, making it suitable for demanding environments. The holder is designed for wave soldering with solderability at 245°C for 2 seconds and resistance to soldering heat at 260°C for 10 seconds.
The fuseholder is rated 600V (UL/CSA) and 250/500 VAC (VDE).
The current rating is 30 A (UL/CSA) and 16 A (VDE).
It accepts 5x20mm and 6.3x32mm (0.25" Dia x 1.26" L) cartridge fuses.
Through hole mounting with PC pin termination.
-40°C to 85°C.
IP40.
