| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Ambient Temperature Range | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Strength | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Housing Material | |
| Impulse Withstand Voltage | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Orientation | |
| Overvoltage Category | |
| Pollution Degree | |
| Power Rating | |
| Protection Class | |
| Protection Degree | |
| SVHC Present | |
| Shock Safe Category | |
| Solderability Temperature | |
| Soldering Heat Resistance | |
| Storage Temperature | |
| Storage Temperature Range | |
| Tape & Reel | |
| Terminal Material | |
| Termination Style | |
| Voltage | |
| Voltage Rating | |
| Weight |

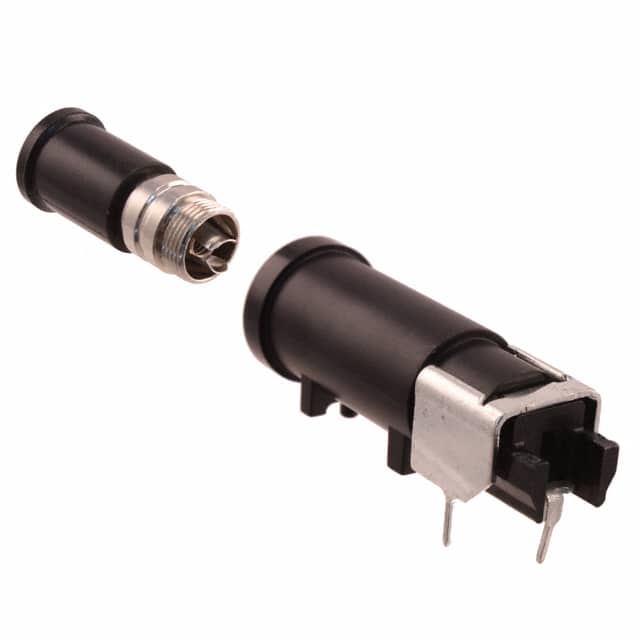

The Schurter FUP series shock-safe fuseholder (part number 0031.2510) accepts 5x20mm and 6.3x32mm cartridge fuses. It is rated 30A at 600V (UL/CSA) and 16A at 250/500V (VDE), with a power acceptance of 4W at 16A and 23°C ambient. The holder features a horizontal orientation for through-hole PCB mounting with tin-plated copper alloy PC pin terminals.
Electrical characteristics include contact resistance ≤10 mΩ, dielectric strength >3 kV, impulse withstand voltage >4 kV, and insulation resistance ≥10 MΩ. The housing is made of black thermoplastic rated UL 94V-0, and the unit weighs 13 g. The design meets IP40 protection degree and is suitable for protection class I or II appliances.
This fuseholder is designed for equipment with three-phase supply (400 VAC) and applications up to 16 A (VDE). It accepts both 5x20mm and 6.3x32mm fuse sizes, providing flexibility in fuse selection. The operating temperature range is -40°C to 85°C.
The fuseholder is rated 30 A (UL/CSA) and 16 A (VDE).
It is rated 600 V (UL/CSA) and 250/500 VAC (VDE).
It accepts 5mm x 20mm and 6.3mm x 32mm cartridge fuses.
Through-hole mounting with PC pin terminals, horizontal orientation.
-40 °C to 85 °C.
IP40 protection degree.
