| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Degree of Protection | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Mounting Type | |
| Number of Circuits | |
| Protection Class | |
| Rated Power Acceptance | |
| Tape & Reel | |
| Termination Style | |
| Voltage | |
| Voltage Rating |

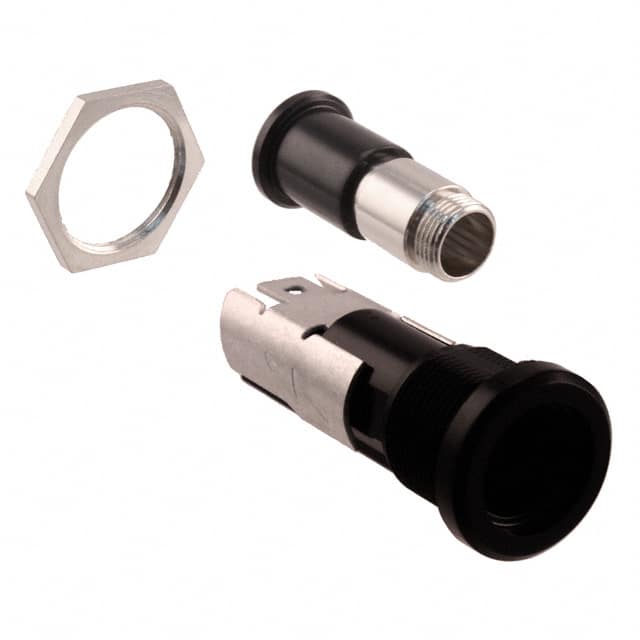

The Schurter 0031.2203 is a shock-safe fuseholder designed for 5x20mm cartridge fuses. It features a panel mount front-side installation with a fixing nut and offers solder lug or quick-connect 6.3x0.8mm terminals. The holder is rated for 250VAC (VDE) and 600VAC/DC (UL/CSA) with a current rating of 16A (VDE) or 30A (UL/CSA).
This fuseholder accepts up to 4W of power dissipation at 23°C ambient temperature and provides IP40 protection (IP67 with optional accessory). It is suitable for protection class I appliances per IEC 61140 and operates over an ambient temperature range of -40°C to 85°C. The socket is made of thermoplastic with UL 94V-0 flammability rating, and terminals are tin-plated copper.
Designed for circuit protection applications, the 0031.2203 accommodates panel thicknesses up to 8mm and requires a maximum fixing nut torque of 1.2 Nm. It meets overvoltage category III and pollution degree 3 per IEC 60664-1.
250 VAC (VDE) and 600 VAC/DC (UL/CSA).
16 A (VDE) and 30 A (UL/CSA).
5mm x 20mm cartridge fuses.
Panel mount, front side with fixing nut.
IP40 standard, IP67 with optional accessory.
-40 °C to 85 °C.
