| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 10 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| Industrial Grade | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style |

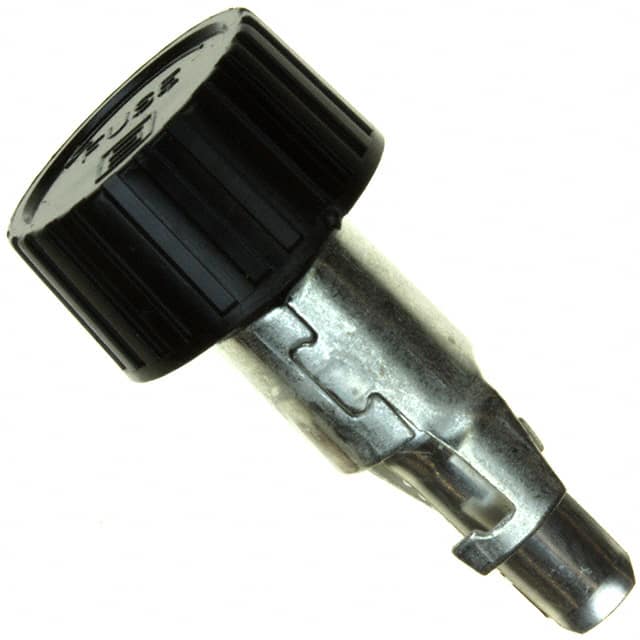

The Schurter 0031.1811 (FEU Grip) is a black knob accessory designed for use with Schurter FEU series panel mount fuseholders. This knob allows secure front-side mounting of a fuseholder for 5x20mm or 6.3x32mm fuse sizes.
Electrically, the fuseholder assembly is rated for 250 VAC / 10 A under VDE standards and 600 VAC/DC / 20 A under UL/CSA standards, with a power acceptance of 4 W at 10 A and 23°C. Contact resistance is 10 mΩ or less, and dielectric strength exceeds 3 kV / 4 kV between live parts.
The knob is part of a shock-safe (PC2) design with IP40 protection, suitable for applications requiring protection class I. It uses a thermoset black socket with tin-plated copper alloy terminals and is designed for iron soldering. Operating temperature range is -40°C to 85°C.
-40°C to 85°C ambient air temperature.
250 VAC / 10 A (VDE) and 600 VAC/DC / 20 A (UL/CSA).
Protection class I (IEC 61140) and IP40.
Fuse sizes 5x20 mm and 6.3x32 mm.
Panel mount from front side with solder terminals.
≤10 mΩ at 100 mA.
