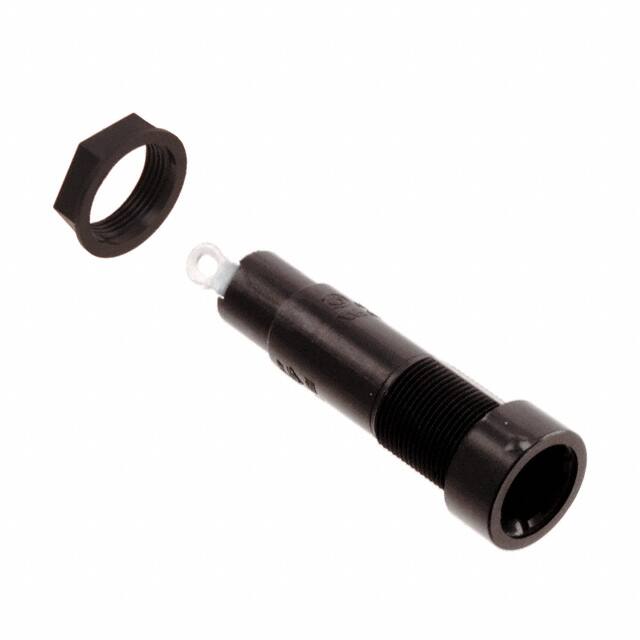

0031.1681 Panel mount fuseholder by Schurter, rated 10A (VDE) / 20A (UL) at 250VAC / 600VAC. Accepts 5x20mm and 6.3x32mm cartridge fuses.
Mfr Part #:

0031.1681

Available from 1 distributors
Mfr Name: Schurter Inc.
Schurter Inc.
Panel mount fuseholder by Schurter, rated 10A (VDE) / 20A (UL) at 250VAC / 600VAC. Accepts 5x20mm and 6.3x32mm cartridge fuses.
✓ Total Stock: 4 pcs

0031.1681 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0031.1681 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Material
Contact Resistance
Current Rating (Amps)
For Use With
Fuse Size
Fuse Type
Fuseholder Type
Industrial Grade
Insulation Resistance
Lead Style
Medical Grade
Mounting Type
Number of Circuits
Operating Temperature Range
Panel Thickness
SVHC Present
Storage Conditions
Tape & Reel
Termination Style
Voltage
Weight
View Similar Products (0)

0031.1681 Description

Short technical summary and product information.

The Schurter 0031.1681 is a shock-safe panel mount fuseholder designed for 5x20mm and 6.3x32mm cartridge fuses. It features a slotted cap and solder lug terminals. The fuseholder is rated for 10A (VDE) and 20A (UL/CSA) at 250VAC (VDE) and 600VAC/DC (UL/CSA). It has a dielectric strength greater than 3kV and contact resistance ≤10 mΩ. The socket is made of thermoplastic UL94V-0, and terminals are tin-plated copper alloy. It operates from -40°C to 85°C and has an IP40 rating. Suitable for protection class I equipment per IEC 61140. Applications include medical equipment and other industrial uses.

0031.1681 Quick Information

Product Type: Fuseholder
Series: FEU (Med)
Canonical Name: Schurter FEU Fuseholder, Panel Mount, 5x20mm/6.3x32mm, 10A/20A, 250VAC/600VAC
Subcategory: Panel Mount Fuseholder

0031.1681 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0031.1681 Features

  • Shock-safe panel mount fuseholder.
  • Accepts 5x20mm and 6.3x32mm fuses.
  • Rated 10A (VDE) and 20A (UL/CSA).
  • Operates from -40°C to 85°C.
  • Solder lug termination with tin-plated contacts.

0031.1681 Applications

  • Used in medical equipment applications.
  • Suitable for industrial control panels.
  • Ideal for protection class I equipment.
  • Can be used in power supplies and instrumentation.

0031.1681 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the Schurter 0031.1681 fuseholder?

10A (VDE) and 20A (UL/CSA).

What is the voltage rating?

250VAC (VDE) and 600VAC/DC (UL/CSA).

What fuse sizes does it accept?

5x20mm and 6.3x32mm (1/4" x 1-1/4").

What is the operating temperature range?

-40°C to 85°C.

What is the IP rating?

IP40.

What is the mounting type?

Panel mount, front side.

Is it RoHS compliant?

RoHS3 compliant (unverified).
