| Category | |
| Manufacturer Name | |
| Admissible Torque on Fixing Nut | |
| Ambient Temperature Range | |
| Attachment Method | |
| Climatic Category | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Current Rating (UL/CSA) | |
| Current Rating (VDE) | |
| Degree of Protection | |
| Dielectric Strength (between live parts) | |
| Dielectric Strength (between live parts, higher) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Impulse Withstand Voltage (between live parts) | |
| Impulse Withstand Voltage (between live parts, higher) | |
| Insulation Resistance (between live parts) | |
| Insulation Resistance (between live parts, higher) | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Overvoltage Category | |
| Panel Thickness (max) | |
| Pollution Degree | |
| Power Rating (5x20 mm) | |
| Power Rating (IEC) | |
| Protection Class | |
| Resistance to Soldering Heat | |
| Shock Safe Category | |
| Solderability | |
| Storage Temperature | |
| Storage Temperature Range | |
| Termination Style | |
| Voltage | |
| Voltage Rating (UL/CSA) | |
| Voltage Rating (VDE) | |
| Weight |

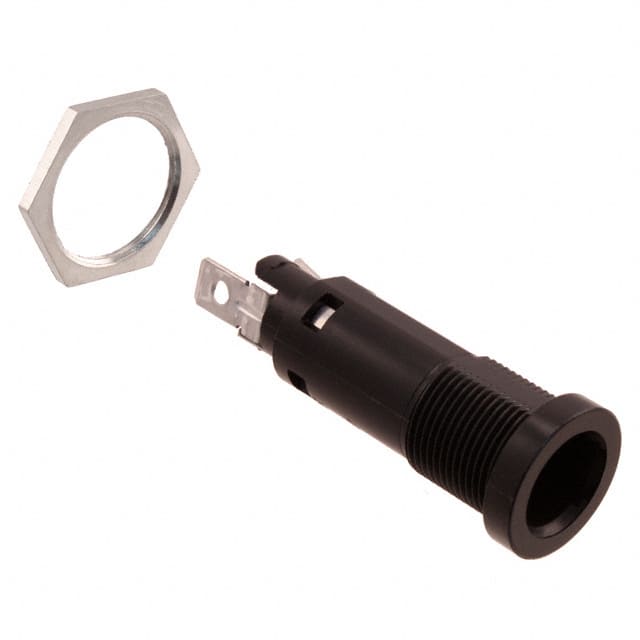

The Schurter 0031.1631 is a panel mount fuseholder designed for 500VAC applications, suitable for equipment with three-phase supply up to 400VAC. It accepts both 5x20mm and 6.3x32mm fuse-links, offering flexibility for various fuse sizes. The holder is rated at 500VAC (VDE) for 10A and 600VAC/DC (UL/CSA) for 20A, with power acceptance of 4W (6.3x32mm) or 3.2W (5x20mm) at 23°C ambient.
This fuseholder features a shock-safe category PC2 per IEC 60127-6, an IP40 degree of protection, and is suitable for protection class I equipment. It mounts on the panel front side using a fixing nut, and the terminals are solder lug with optional quick-connect 6.3x0.8mm. The housing is made of thermoplastic, with tin-plated copper alloy contacts. Operating temperature range is -40°C to 85°C, with storage conditions of 0°C to 60°C and max 70% relative humidity.
Electrical characteristics include contact resistance ≤10mΩ at 100mA, dielectric strength >3kV (50Hz for 1 minute), and impulse withstand voltage >4kV. The holder is rated for overvoltage category II and pollution degree 2 per IEC 60664-1. Climatic category is 40/085/21 per IEC 60068-1.
The voltage rating is 500VAC (VDE) and 600VAC/DC (UL/CSA).
The current rating is 10A (VDE) and 20A (UL/CSA).
It accepts 5x20mm and 6.3x32mm fuse sizes.
It is panel mount, attached with a fixing nut from the front side.
The admissible ambient temperature range is -40°C to 85°C.
