| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Contact Resistance | |
| For Use With | |
| Mounting Type | |
| Panel Thickness | |
| SVHC Present | |
| Terminal | |
| Termination Style |

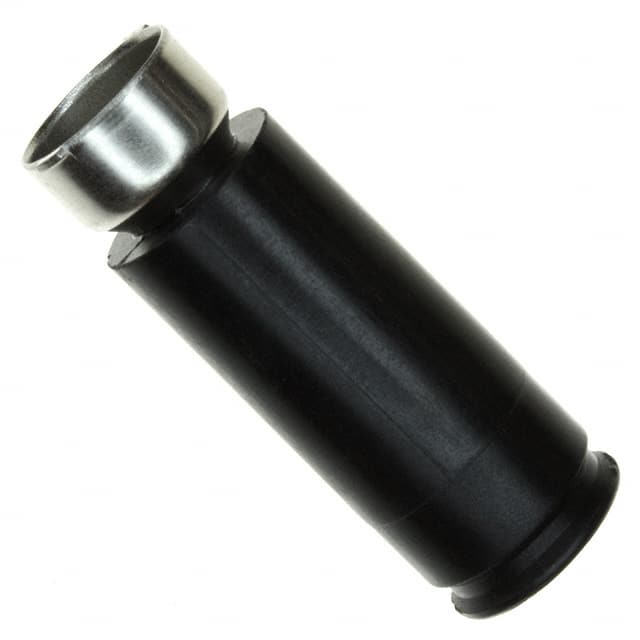

The Schurter Inc. 0031.1611 is a fuseholder cap accessory, part of the FEC series, designed for use with 5x20mm fuse links. It features a shock-safe PC2 category and is suitable for panel mounting from the front side, secured with a fixing nut.
This fuseholder cap supports both solder and 6.3 x 0.8 mm quick-connect terminals. It is rated for 500 VAC (VDE) and 600 VAC/DC (UL/CSA), with a rated current of 10 A (VDE) and 20 A (UL/CSA). The ingress protection is IP40, and it is suitable for appliances with protection class I.
Constructed with a thermoplastic socket and copper alloy, tin-plated terminals, the 0031.1611 operates within an admissible ambient temperature range of -40 °C to 85 °C. Its climatic category is 40/085/21. The unit weight is approximately 7g for the socket and 5g for the terminals.
This component is designed for applications with three-phase supply (400 VAC) and adheres to product standards such as IEC 60127-6 for miniature fuses and fuse-holders. It is also suitable for applications according to IEC/UL 62368-1 and IEC 60335-1.
The Schurter 0031.1611 fuseholder cap supports 5 x 20 mm and 6.3 x 32 mm fuse links.
The rated voltage is 500 VAC for VDE applications and 600 VAC/DC for UL/CSA applications.
The rated current is 10 A for VDE applications and 20 A for UL/CSA applications.
The Schurter 0031.1611 fuseholder cap is designed for panel mounting from the front side.
The Schurter 0031.1611 fuseholder cap offers solder terminals and 6.3 x 0.8 mm quick-connect terminals.
The admissible ambient temperature range for the Schurter 0031.1611 fuseholder cap is -40 °C to 85 °C.
The Schurter 0031.1611 fuseholder cap has a degree of protection of IP40.
