| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 4 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Admissible Ambient Temperature | |
| Attachment | |
| Climatic Category | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Degree of Protection | |
| Dielectric Strength (Minimum) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Halogen Free | |
| Impulse Withstand Voltage | |
| Industrial Grade | |
| Insulation Resistance (Minimum) | |
| Material Cap | |
| Material Socket | |
| Material: Terminals | |
| Mounting Type | |
| Number of Circuits | |
| Overvoltage Category | |
| Panel Thickness | |
| Pollution Degree | |
| Rated Current (UL/CSA) | |
| Rated Current (VDE) | |
| Rated Power Acceptance | |
| Rated Voltage | |
| Resistance to Soldering Heat | |
| SVHC Present | |
| Shock Safe Category | |
| Solderability | |
| Storage Conditions | |
| Termination Style | |
| Unit Weight | |
| Voltage | |
| Voltage Rating |

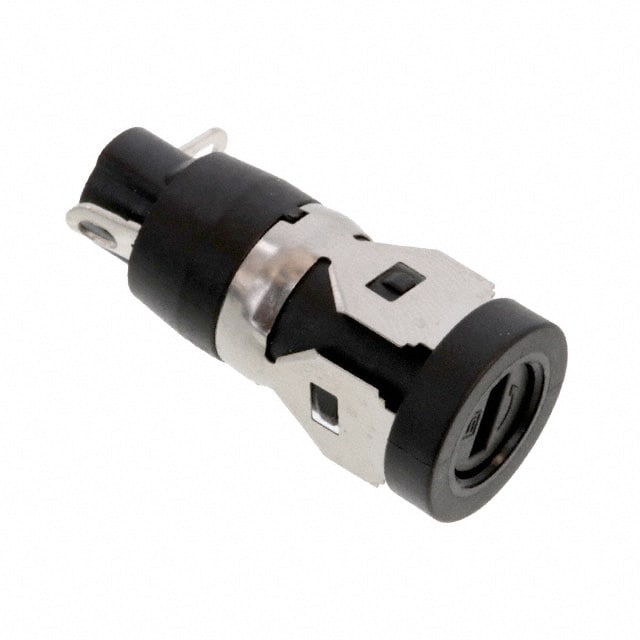

The Schurter 0031.1091 is a shock-safe fuseholder designed for 5x20mm cartridge fuses. It features a panel mount snap-in attachment with solder lug terminals, suitable for panel thicknesses from 0.75 to 3.0 mm. The fuseholder is rated for 10A at 250VAC (VDE and UL/CSA) with a power acceptance of 3.2W at 23°C. It offers IP40 protection and operates over -40°C to 85°C. The housing is made of thermoplastic UL 94V-0 material, and the terminals are tin-plated copper alloy. Electrical characteristics include contact resistance ≤10 mΩ, dielectric strength >3 kV, and insulation resistance ≥10 MΩ. This fuseholder meets overvoltage category III and pollution degree 2 per IEC 60664-1. It is suitable for industrial applications requiring reliable circuit protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.80 | $6.50 |
| 10+ | $4.00 | $5.00 |
| 100+ | $3.50 | $4.20 |
| 1,000+ | $3.30 | $3.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 A (VDE and UL/CSA).
250 VAC.
Panel mount with snap-in attachment for panel thickness 0.75-3.0 mm.
-40°C to 85°C.
IP40.
5mm x 20mm cartridge fuses.
Solder lug terminals.
