| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26 pcs
|
26 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

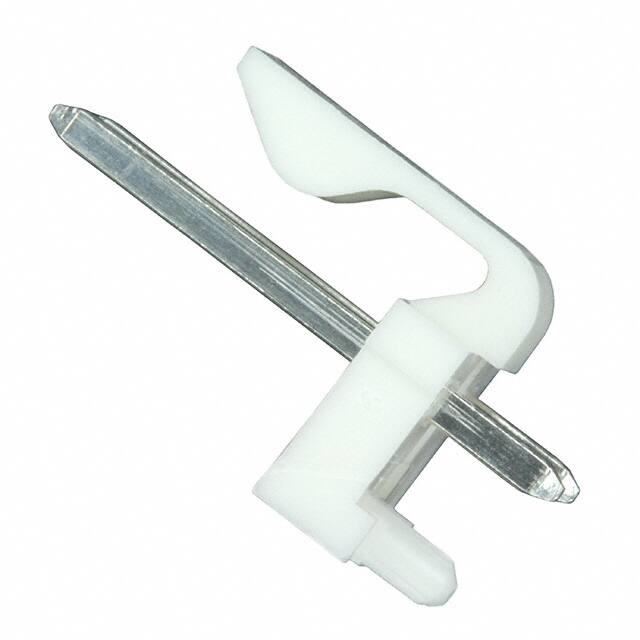

The Molex 0026644020 is a 2-position, single-row, 3.96mm pitch through-hole header designed for board-to-board or cable applications. It features male square pins with a tin contact finish of 60.0µin (1.52µm) over brass contact material. The header is shrouded with one wall and includes a friction lock for secure mating. The insulation is made of polyester with a natural color and a UL94 V-0 flammability rating. The overall contact length is 18.29mm, with an insulation height of 11.33mm and a contact length of 11.43mm. A board guide feature aids in alignment during assembly.
3.96mm
2 positions in a single row.
Through hole with solder termination.
Brass contacts with a tin finish of 60.0µin (1.52µm).
Yes, it has a friction lock.
Polyester insulation with UL94 V-0 rating.
