| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
789 pcs
|
789 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

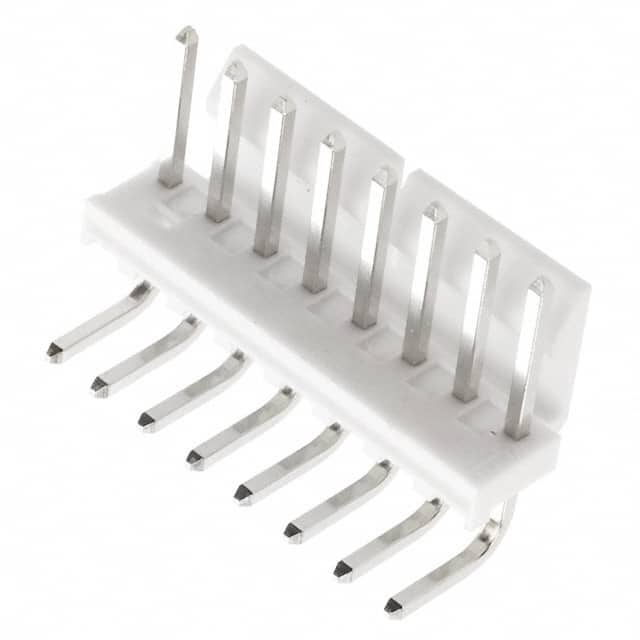

The Molex 0026605080 is an 8-position header designed for board-to-board or cable connections. It features a single row of male pins with a 3.96mm pitch, making it suitable for compact applications requiring reliable power or signal transmission. The connector is through hole mounted with a right-angle orientation, allowing for low-profile connections perpendicular to the PCB.
The header is shrouded with one wall and includes a friction lock for secure mating. Contacts are square pins with a tin finish of 60.0µin (1.52µm) thickness, providing good solderability and corrosion resistance. The insulator is made of glass-filled polyester in natural color, rated UL94 V-0 for flammability. Contact length is 11.43mm and insulation height is 10.00mm.
This component is commonly used in consumer electronics, industrial equipment, and automotive applications where a robust, polarized connection is needed. The right-angle design facilitates space-saving layouts, and the friction lock prevents accidental disconnection.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.41 | $1.41 |
| 10+ | $1.20 | $1.20 |
| 100+ | $1.02 | $1.02 |
| 500+ | $0.91 | $0.91 |
| 1,600+ | $0.84 | $0.84 |
| 6,400+ | $0.76 | $0.76 |
| 11,200+ | $0.73 | $0.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
3.96mm (0.156 inches).
Through hole, right angle.
Tin with 60.0µin (1.52µm) thickness.
Polyester, glass filled, rated UL94 V-0.
Yes, friction lock.
Yes, shrouded with 1 wall.
