| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
250 pcs
|
250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

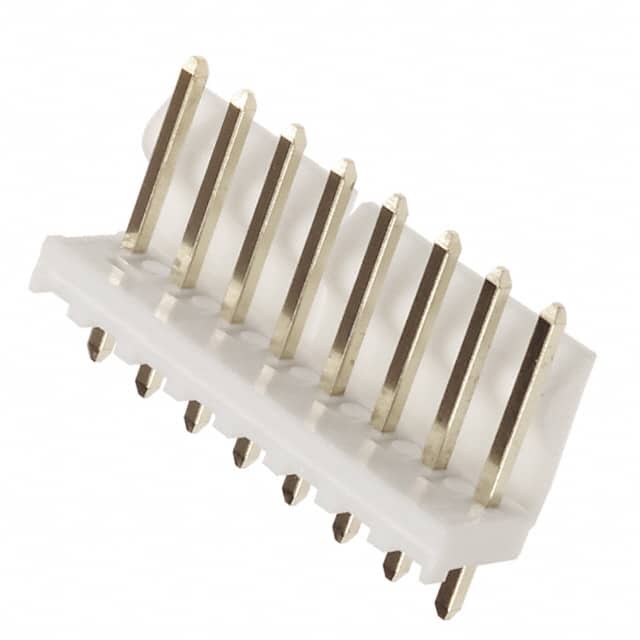

The Molex 0026604080 is a shrouded header connector designed for board-to-board or cable applications. It features 8 positions in a single row with a 3.96mm (0.156") pitch. The connector uses through hole mounting with solder termination and has a friction lock fastening type for secure mating. The housing is made of glass filled polyester with a UL94 V-0 flammability rating and natural color. The male square pins are tin plated with a thickness of 60.0µin (1.52µm). The insulation height is 11.33mm (0.446") and the overall contact length is 18.29mm (0.720"). All 8 positions are loaded. This header is suitable for applications requiring a reliable and polarized connection.
8 positions in a single row.
3.96mm (0.156").
Through hole with solder termination.
Yes, it has a friction lock fastening type.
Tin with 60.0µin (1.52µm) thickness.
Glass filled polyester with UL94 V-0 rating.
