| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

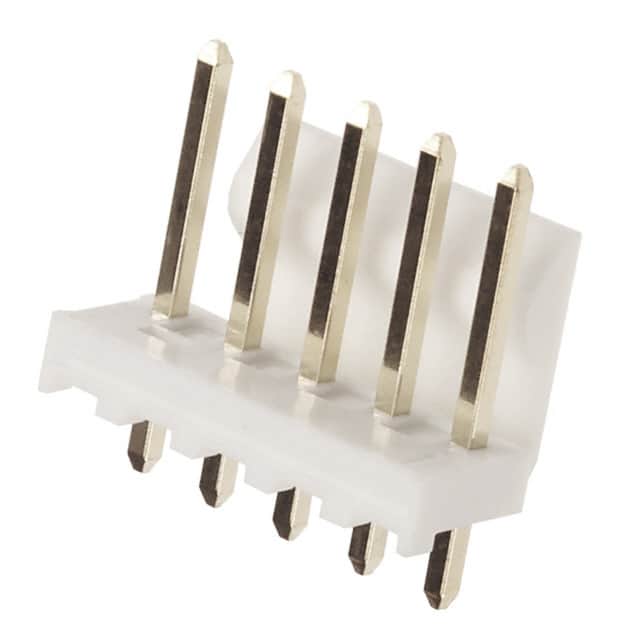

The Molex 0026604050 is a 5 position single row shrouded header designed for board-to-board or cable applications. It features a 3.96mm pitch and through hole solder termination for reliable connections.
The header has a friction lock fastening type and a shrouded 1-wall design for secure mating. The insulation is made of glass filled polyester with UL94 V-0 flammability rating and natural color.
Contacts are male square pins with tin finish and 60.0µin thickness. The overall contact length is 0.720" (18.29mm) with a contact length of 11.43mm. The insulation height is 11.33mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.53 | $0.53 |
| 10+ | $0.45 | $0.45 |
| 400+ | $0.35 | $0.35 |
| 800+ | $0.33 | $0.33 |
| 1,200+ | $0.32 | $0.32 |
| 5,200+ | $0.29 | $0.29 |
| 10,000+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.96mm (0.156").
It has 5 positions in a single row, all loaded.
Through hole with solder termination.
Tin with a thickness of 60.0µin (1.52µm).
Yes, it has a shrouded 1-wall design with friction lock fastening.
