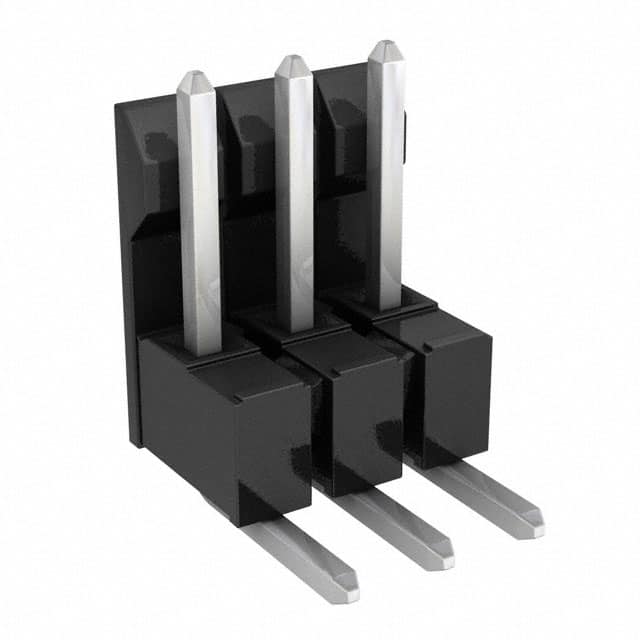

The Molex 0022281030 is a 3-position, single-row header connector with a 2.54mm pitch. It features male pin contacts with a tin finish and a square contact shape. The connector is designed for through hole, right angle mounting, making it suitable for space-constrained PCB layouts.
The header uses a friction lock fastening type and has a 1-wall shrouding for added retention. The insulation is made of glass-filled polyamide (PA/Nylon), colored black, with an insulation height of 7.21mm. The contact length is 3.05mm, and the contact finish thickness is 100µin (2.54µm). The material flammability rating is UL94 V-0.
This connector is suitable for board-to-board or cable applications. All 3 positions are loaded in a single row. The style is unshrouded on three sides (shrouded - 1 wall), providing mechanical keying. The operating environment is supported by the tin plating and glass-filled nylon insulation.
No electrical ratings are specified in available data. The part is listed as RoHS3 compliant and REACH unaffected, and has an MSL rating of 1 (unlimited). However, compliance data is unverified and should be confirmed with official documentation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.25 | $0.50 |
| 10+ | $0.20 | $0.40 |
| 100+ | $0.15 | $0.30 |
| 1,000+ | $0.10 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 3 positions in a single row.
The pitch is 2.54mm (0.100 inch).
It is a through hole, right angle mount.
The contacts have a tin finish with a thickness of 100µin (2.54µm).
The insulation is made of polyamide (PA), nylon, glass filled, colored black.
Yes, it has a friction lock fastening type.
The insulation material has a UL94 V-0 rating.
