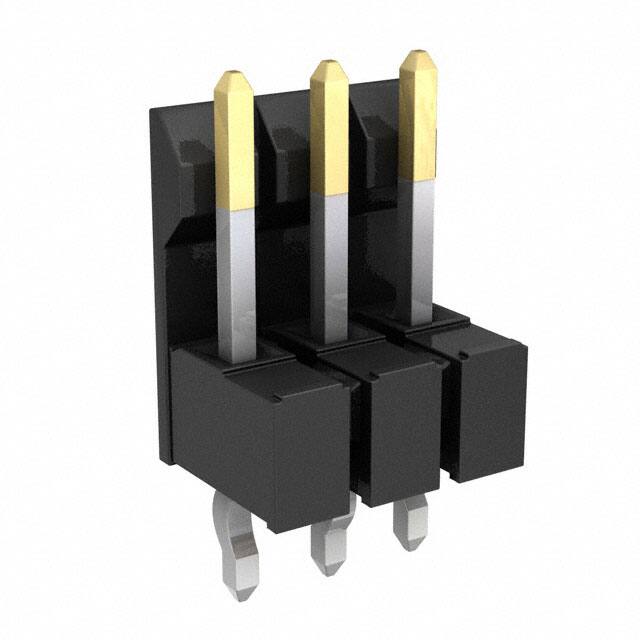

0022280034 Molex 0022280034 is a 3-position, single row, through-hole header with 2.54mm pitch. It features a breakaway design, shrouded - 1 wall, friction lock, and tin-plated contacts.
Mfr Part #:

0022280034

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 0022280034 is a 3-position, single row, through-hole header with 2.54mm pitch. It features a breakaway design, shrouded - 1 wall, friction lock, and tin-plated contacts.
✓ Total Stock: 1,495 pcs
$ Price Range: $0.09

0022280034 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
1,495 pcs
On Request
1495 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0022280034 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Overall Contact Length
Pitch
Shrouding
Style
Termination
Termination Style
View Similar Products (0)

0022280034 Description

Short technical summary and product information.

The Molex 0022280034 is a 3-position, single row, through-hole header with a 2.54mm pitch. It is a breakaway connector type, allowing customization of pin count. The header features a shrouded - 1 wall design with friction lock for secure mating. Contacts are male pins with tin plating, and termination is via kinked pin solder.



The mounting type is through hole, with an overall contact length of 14.1mm and a contact length of 3.43mm. The insulation height is 8.56mm, and the insulation material is black polyamide (PA), nylon, glass filled, with a UL94 V-0 flammability rating.



This connector is suitable for board-to-board or cable applications. It is RoHS compliant and REACH unaffected, though compliance data is unverified. The part number cross-references to Digi-Key part number 0022280034-ND.

0022280034 Quick Information

Product Type: Header, Breakaway
Series: KK 100
Canonical Name: Molex 0022280034 Header, Breakaway, 3 Positions, 2.54mm Pitch, Through Hole
Subcategory: Headers, Male Pins

0022280034 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0022280034 Estimated Pricing

Qty Low High
10,000+ $0.09 $0.09

Estimated market price range - modelled values for guidance only, not live distributor offers.

0022280034 Features

  • 3-position single row header.
  • 2.54mm pitch for compact designs.
  • Through-hole mounting for secure attachment.
  • Friction lock for reliable connection.
  • Tin-plated contacts for conductivity.

0022280034 Applications

  • Board-to-board connections in electronic assemblies.
  • Cable-to-board interfaces for internal wiring.
  • Prototyping with breakaway pin customization.
  • Industrial control and automation systems.

0022280034 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions for Molex 0022280034?

3 positions.

What is the pitch of this header?

2.54mm (0.100").

What is the mounting type?

Through hole.

What is the contact finish?

Tin.

What is the insulation material?

Polyamide (PA), Nylon, Glass Filled.

What is the flammability rating?

UL94 V-0.

What is the fastening type?

Friction lock.
