| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Flammability | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| PC Tail Length | |
| Packaging Type | |
| Pitch | |
| Pitch - Mating Interface | |
| Pitch - Termination Interface | |
| Plating min Mating | |
| Plating min Termination | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination |

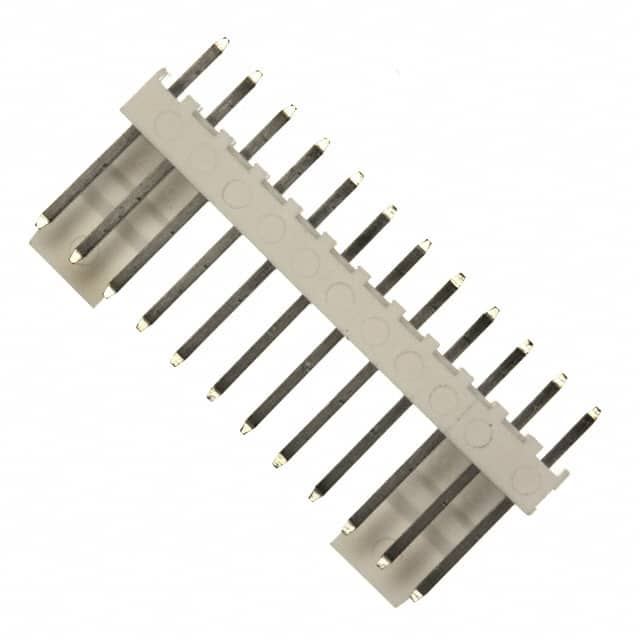

The Molex 0022272121 is a 12-position, single-row header from the KK series, designed for wire-to-board applications. It uses a 2.54mm (.100") pitch and mounts vertically through a printed circuit board. The header is shrouded with a 1-wall design and includes a friction lock for secure mating with KK crimp terminal housings 2695 and 6471. Contacts are made of brass with a minimum tin plating of 5 µm on both mating and termination interfaces. The overall contact length is 14.22mm, with a mating contact length of 7.49mm and a PC tail length of 3.56mm. The insulator is natural polyamide (nylon) rated UL94 V-0, making it suitable for applications requiring flammability resistance. The part is RoHS3 compliant, halogen-free, and packaged in a bag. Mating pitch is 2.54mm at both the interface and termination sides.
12 positions.
2.54mm (0.100").
Through Hole.
Tin, with a minimum thickness of 5 µm on mating and termination areas.
Polyamide (PA), Nylon, rated UL94 V-0.
Friction Lock.
Bag.
