| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

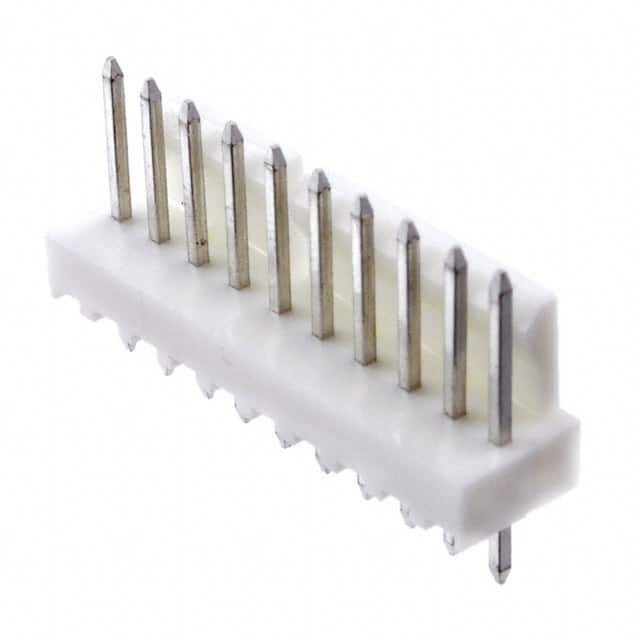

The Molex 0022232101 is a 10-position header connector designed for board-to-board or cable applications. It features a single row of male pins with a 2.54mm pitch, making it suitable for standard spacing requirements. The connector is through-hole mounted with solder termination, providing reliable mechanical and electrical connections. The housing is made of polyamide (nylon) with a white color and a UL94 V-0 flammability rating. The contacts are made of brass with a tin finish, offering good conductivity and corrosion resistance. The shrouded design with one wall and a friction lock ensures secure mating. The overall contact length is 14.22mm, with a mating contact length of 7.49mm and an insulation height of 8.18mm. This header is suitable for various applications requiring a robust and reliable interconnection.
10 positions.
2.54mm.
Through hole.
Brass.
Polyamide (PA), Nylon.
UL94 V-0.
Friction lock.
