| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
254 pcs
|
254 pcs | On Request | 1 | On Request | On Request | 2026-02-17 01:16:00 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Alternative Packaging | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Finish - Termination | |
| Contact Finish Thickness | |
| Contact Finish Thickness - Mating | |
| Contact Finish Thickness - Termination | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Duration at Max Process Temperature | |
| Fastening Type | |
| Features | |
| Flammability Rating | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Lead-free Process Capability | |
| Material Flammability Rating | |
| Max Cycles at Max Process Temperature | |
| Mounting Type | |
| Net Weight | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| PC Tail Length | |
| PCB Thickness Recommended | |
| Packaging Type | |
| Pitch | |
| Pitch - Mating Interface | |
| Pitch - Termination Interface | |
| Polarized to PCB | |
| Process Temperature (Max) | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage - Maximum | |
| Voltage Rating |

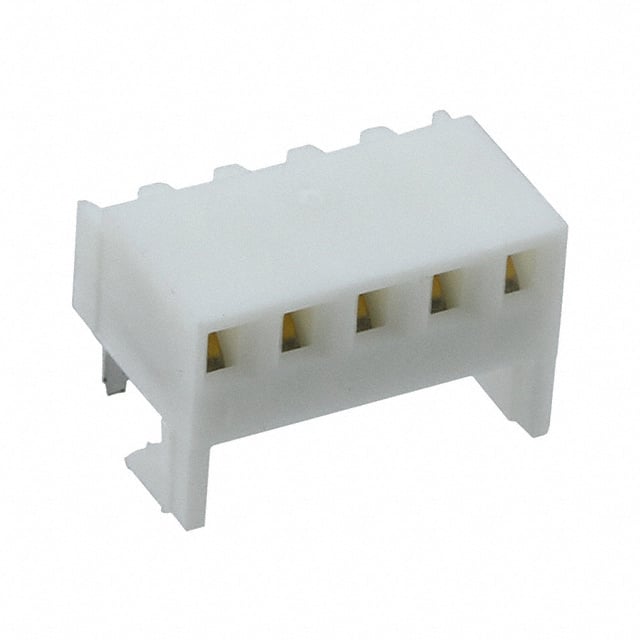

The Molex 0022162050 is a 5 circuit right angle PCB receptacle from the KK 254 series. It features a 2.54mm pitch on both mating and termination interfaces, with gold plating on the mating contacts (0.38µm) and tin on the termination contacts (2.54µm). The connector is designed for board edge, through hole, right angle mounting and uses solder termination.
The receptacle accepts non-gendered contacts and is polarized to the PCB for correct orientation. It is rated for 2.5A per contact and a maximum voltage of 500V. The housing is made of white nylon with a UL94 V-0 flammability rating, and the contacts are brass.
This part is suitable for board-to-board or cable applications and includes board hooks for secure attachment. It is packaged in a tray, with an alternative tape and reel option (part number 22192051). The recommended PCB thickness is 1.60mm.
It has 5 positions (circuits), all loaded.
The pitch is 2.54mm on both the mating and termination interfaces.
The maximum current per contact is 2.5A.
The maximum voltage is 500V.
It uses board edge, through hole, right angle mounting with solder termination.
The operating temperature range is -40°C to 80°C.
Yes, it is EU RoHS compliant.
