| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
257 pcs
|
257 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
257 pcs
|
257 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

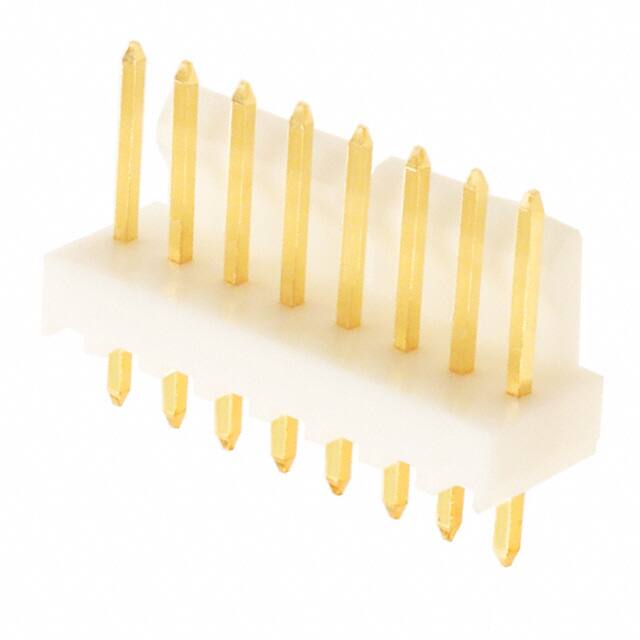

The Molex 0022112082 is a shrouded header connector with 8 male pin contacts arranged in a single row on a 2.54mm pitch. It features a through hole mounting style with solder termination and a friction lock fastening type for secure mating. The header is designed for board-to-board or cable applications.
The contacts are made of brass with a tin finish and a contact finish thickness of 20.0µin (0.51µm). The overall contact length is 14.22mm (0.560") with a contact length of 7.49mm (0.295"). The insulation height is 8.18mm (0.322") and the housing is made of white polyamide (PA) nylon with a UL94 V-0 flammability rating.
The pitch is 2.54mm (0.100").
It has 8 positions, all loaded.
Through hole mounting with solder termination.
Brass contacts with a tin finish, 20.0µin (0.51µm) thick.
Yes, it is shrouded with 1 wall and has a friction lock.
White polyamide (PA) nylon with UL94 V-0 rating.
