| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,415 pcs
|
1415 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

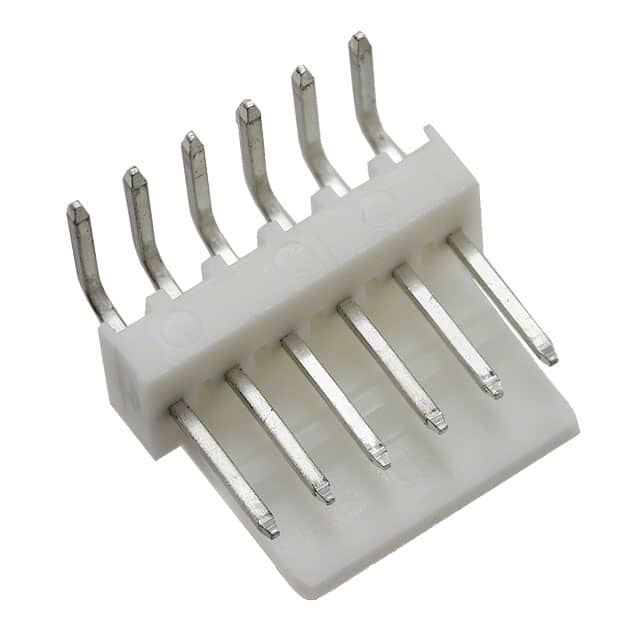

The Molex 0022057068 is a 6-position single row shrouded header designed for board-to-board or cable applications. It features male square pins with a 2.54mm pitch and a right angle through hole mounting style for solder termination.
The connector includes a 1-wall shroud with a friction lock fastening system for secure mating. Contacts are made of brass with a tin finish (60.0µin / 1.52µm thickness). The insulator is natural polyamide (PA66 / Nylon 6/6) with a UL94 V-0 flammability rating and an insulation height of 5.80mm.
This header is suitable for use in a variety of electronic interconnect applications where a compact, reliable right-angle connection is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.29 | $1.29 |
| 10+ | $1.10 | $1.10 |
| 100+ | $0.93 | $0.93 |
| 500+ | $0.83 | $0.83 |
| 1,000+ | $0.79 | $0.79 |
| 5,000+ | $0.71 | $0.71 |
| 10,000+ | $0.67 | $0.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 6 positions, all loaded.
The pitch is 2.54mm (0.100 inches).
Through hole, right angle mounting with solder termination.
Tin finish with a thickness of 60.0µin (1.52µm).
Polyamide (PA66), Nylon 6/6 with UL94 V-0 rating.
