| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
504 pcs
|
504 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
504 pcs
|
504 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination |

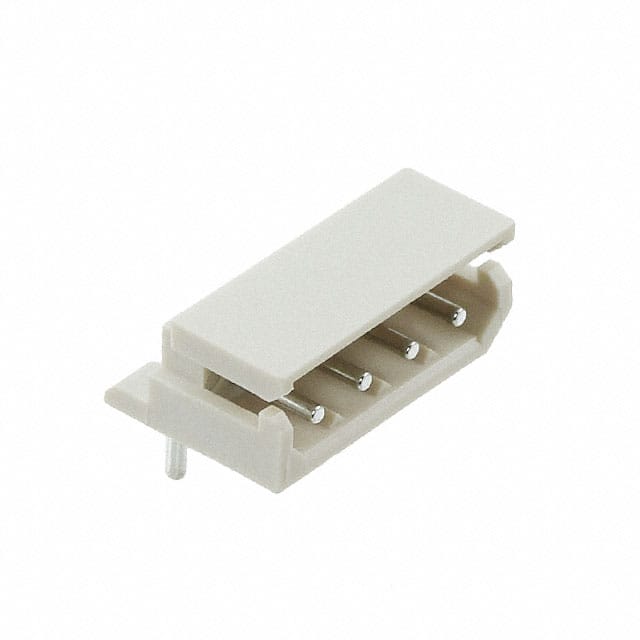

The Molex 0022057045 is a 4 position single row header designed for board to cable/wire applications. It features a 2.50mm pitch and a shrouded 4-wall design that provides robust physical protection and alignment during mating. The through hole right angle termination allows for space-saving perpendicular mounting on a PCB. Contacts are made of brass with a tin finish (160.0µin thickness) ensuring reliable conductivity and solderability. The insulator is molded from glass filled Nylon 6/6 (PA66) in a natural color, with a flammability rating of UL94 V-0, suitable for environments requiring flame retardancy. A detent lock fastening mechanism secures the mating connector, preventing accidental disconnection. This connector is RoHS3 compliant and REACH unaffected, though compliance status is unverified. It is also characterized by an MSL of 1 Unlimited. The part is a through hole component with solder termination, making it suitable for manual or wave soldering processes.
2.50mm (0.098").
4 positions in a single row.
Through hole, right angle.
