| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,840 pcs
|
2840 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

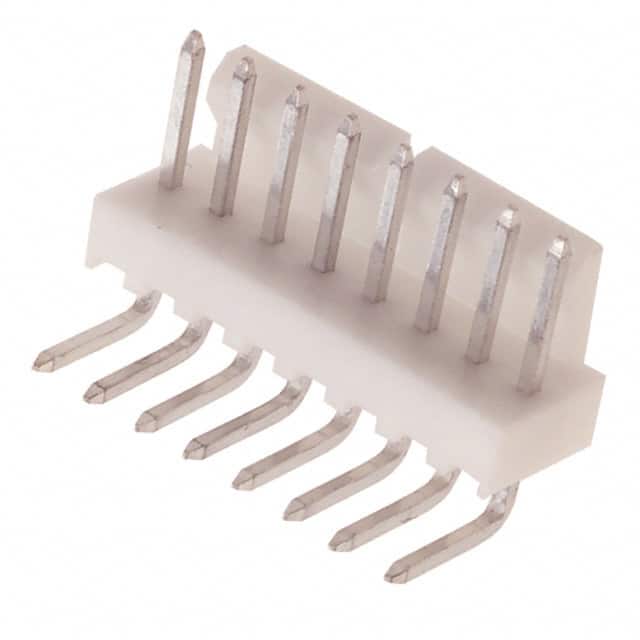

The Molex 0022053081 is an 8-position single row right angle header designed for board-to-board or cable connections. It features a 2.54mm (0.100") pitch and a shrouded -1 wall design with a friction lock for secure mating. The header uses through hole, right angle mounting with solder termination.
Contacts are made of brass with a tin finish of 100µin (2.54µm), providing reliable conductivity. The insulator is white polyamide (nylon) with a UL94 V-0 flammability rating, suitable for a variety of environments. The contact length is 6.70mm and insulation height is 6.50mm.
This header is commonly used in industrial control, consumer electronics, and wire harness applications where a compact, secure interconnect is required. All 8 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.57 | $0.57 |
| 10+ | $0.49 | $0.49 |
| 100+ | $0.41 | $0.41 |
| 500+ | $0.37 | $0.37 |
| 4,000+ | $0.32 | $0.32 |
| 8,000+ | $0.30 | $0.30 |
| 12,000+ | $0.29 | $0.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions in a single row, all loaded.
2.54mm (0.100").
Through hole, right angle.
Tin with 100µin (2.54µm) thickness.
Polyamide (nylon), UL94 V-0 rated.
Yes, shrouded - 1 wall with friction lock.
White.
