| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

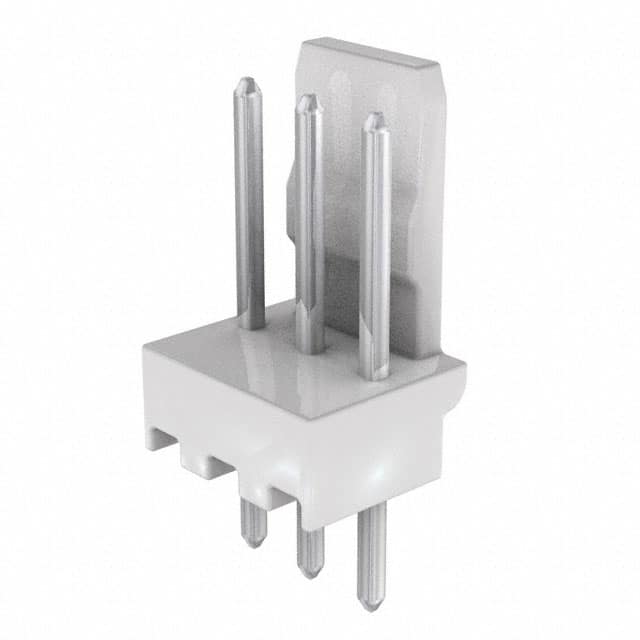

This Molex 0022041031 is a 3-position, single-row header designed for through-hole mounting with solder termination. It features a shrouded 1-wall housing with a friction lock for secure mating in board-to-cable/wire applications. The contacts are square brass pins with a tin plating of 200.0µin (5.08µm) thickness. The overall contact length is 14.20mm (0.559"), with a contact length of 7.49mm. The insulator is made of natural polyamide (nylon) with a flammability rating of UL94 V-0. The insulation height is 11.70mm. The pitch is 2.50mm, making it suitable for compact designs. This connector is RoHS compliant and REACH unaffected, with an MSL of 1 (unlimited).
3 positions in a single row.
2.50mm (0.098 inch).
Through hole with solder termination.
Tin plating, 200.0µin (5.08µm) thickness.
Polyamide (Nylon) with UL94 V-0 rating.
Friction lock for secure mating.
Board to cable/wire.
