Mfr Part #:

0015247240

Name: 0015247240
Brand: Molex
SKU: 0015247240

Mfr Name: Molex

Description:

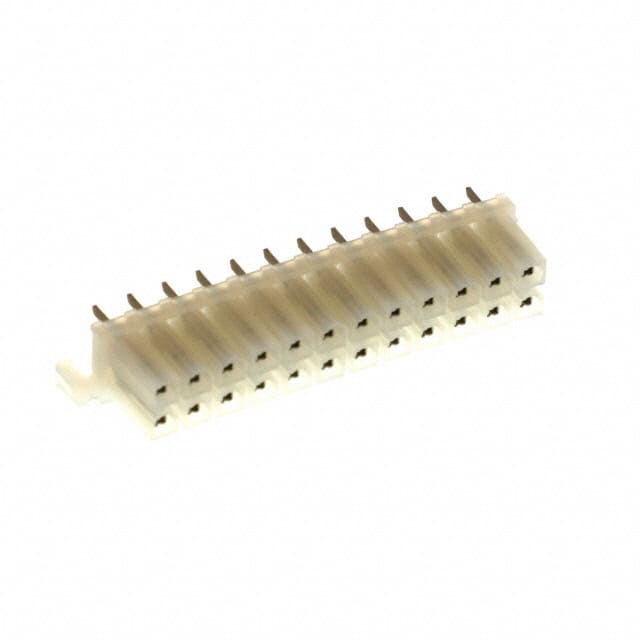

CONN RCPT 24POS 0.165 TIN PCB

Stock on Request

0015247240 Description

Short technical summary and product information.

CONN RCPT 24POS 0.165 TIN PCB

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

0015247244

Molex

CONN RCPT 24POS 0.165 TIN PCB

Category	Headers, Receptacles, Female Sockets
Manufacturer Name	Molex
Connector Type	Receptacle
Contact Finish	Tin
Contact Finish Thickness	100.0碌in (2.54碌m)
Contact Length	0.138" (3.50mm)
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Blind Mating, Board Lock
Insulation Color	Natural
Insulation Height	0.446" (11.33mm)
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Pitch	0.165" (4.20mm)
Row Spacing	0.165" (4.20mm)
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	600V
