| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination |

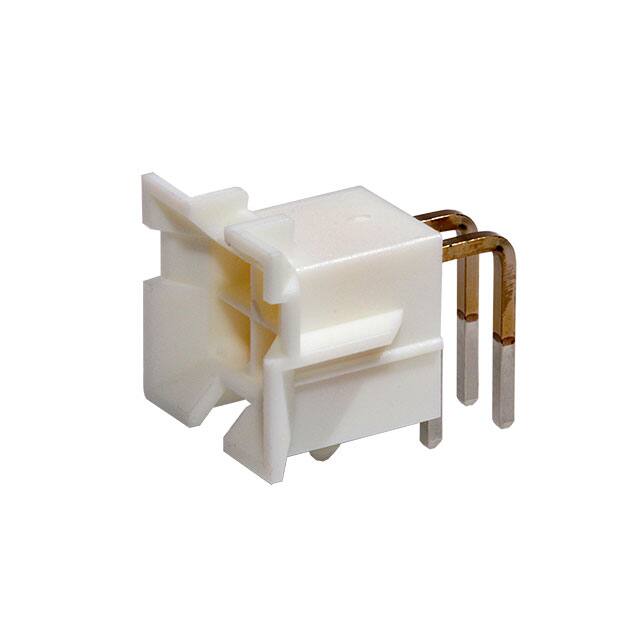

The Molex 0015246043 is a 4-position, 2-row right angle header designed for board-to-board or cable connections. It features a 4.20mm pitch and a shrouded 4-wall housing with a latch holder for secure mating. The connector uses through hole solder termination and has tin-plated brass contacts with a contact finish thickness of 0.76µm.
The insulation is made of Polyamide (PA66/Nylon 6/6) in natural color and has a UL94 V-0 flammability rating. The header includes blind mating and board lock features, and all 4 positions are loaded. The contact length is 3.30mm and the insulation height is 15.00mm. Compliance data indicates RoHS3 and REACH unaffected status, though these are unverified.
It has 4 positions in 2 rows, all loaded.
The pitch is 4.20mm.
Through hole, right angle mounting with solder termination.
Yes, it has a shrouded 4-wall design.
Latch holder for secure mating.
Brass contacts with tin plating, thickness 0.76µm.
Polyamide (PA66) Nylon 6/6 with UL94 V-0 rating.
