| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,932 pcs
|
5932 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

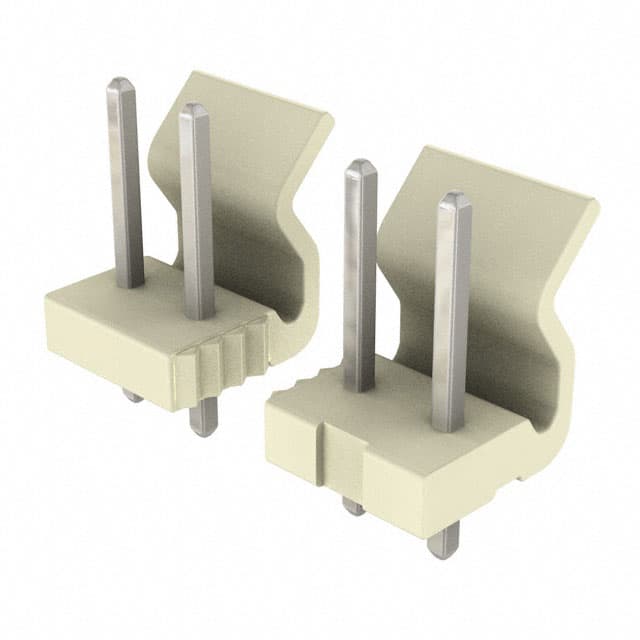

The Molex 0010321071 is a 7-position single row shrouded header designed for board-to-cable/wire applications. It features a 5.08mm pitch and a friction lock fastening type for secure mating. The header is through hole mounted with solder termination and has a single wall shroud. Contacts are made of brass with a tin finish (200.0µin thickness) and have a square shape. The insulation is natural colored polyamide (PA66/Nylon 6/6) with a UL94 V-2 flammability rating. The overall contact length is 0.687" (17.45mm) with a contact length of 10.65mm and an insulation height of 12.90mm. This component is suitable for applications requiring a reliable and polarized connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.05 | $2.05 |
| 10+ | $1.74 | $1.74 |
| 100+ | $1.48 | $1.48 |
| 500+ | $1.32 | $1.32 |
| 1,000+ | $1.26 | $1.26 |
| 5,000+ | $1.12 | $1.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
7 positions in a single row.
5.08mm (0.200 inches).
Through hole with solder termination.
Brass contacts with a tin finish (200.0µin thickness).
Polyamide (PA66/Nylon 6/6) with UL94 V-2 rating.
