| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
552 pcs
|
552 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
522 pcs
|
522 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

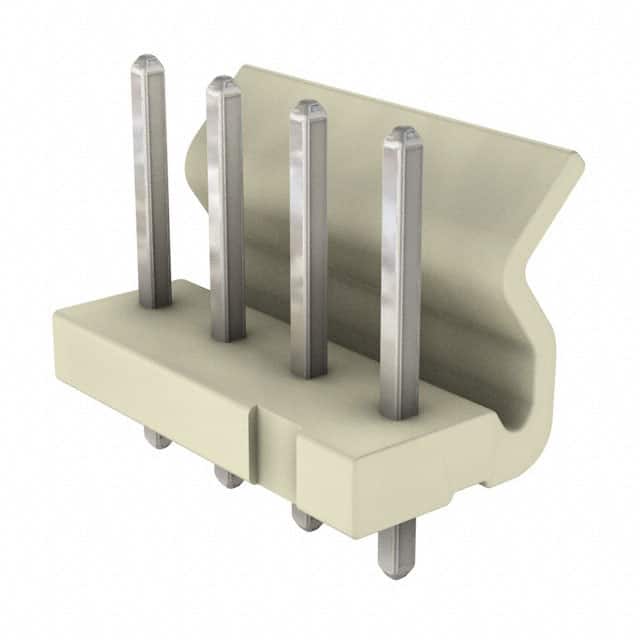

The Molex 0010321041 is a 4-position, single-row header designed for board-to-wire applications. It features a 5.08mm pitch and through-hole mounting with solder termination, ensuring a secure and reliable connection. The connector employs a shrouded design with a 1-wall configuration and a friction lock fastening system, providing proper alignment and retention during mating.
Constructed with brass contacts plated with 200µin of tin, the header offers excellent conductivity and corrosion resistance. The insulation is made from natural polyamide (PA66) nylon 6/6, rated UL94 V-2 for flammability. The overall contact length is 17.45mm, with a contact length of 10.65mm, and an insulation height of 12.90mm.
This header is suitable for various industrial, consumer, and automotive applications where a reliable wire-to-board connection is required. The single-row format and 5.08mm pitch provide a compact footprint while maintaining adequate spacing for signal or power transmission.
4 positions.
5.08mm.
Through hole.
Tin, 200.0µin (5.08µm).
Polyamide (PA66), Nylon 6/6.
Friction lock.
UL94 V-2.
