| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,258 pcs
|
6258 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

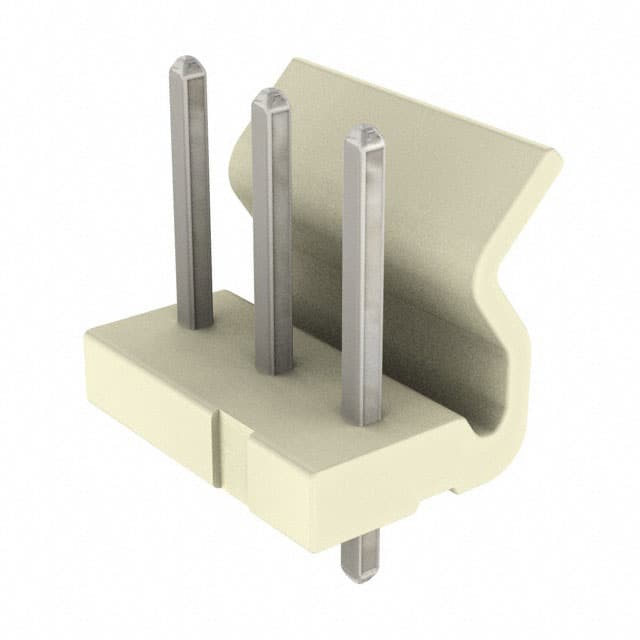

The Molex 0010321031 is a rectangular connector header designed for board-to-cable/wire applications. It features 3 male pin contacts arranged in a single row with a 5.08mm pitch, making it suitable for power or signal connections where a secure mating interface is required.
This component uses a through hole mounting style with solder termination for reliable mechanical attachment to a PCB. The header is fully shrouded with one wall and includes a friction lock fastening mechanism to maintain mating retention without additional hardware.
Constructed with a brass contact material finished with a 5.08µm tin plating, the header offers good conductivity and corrosion resistance. The insulator is molded from natural colored polyamide (PA66) Nylon 6/6 with a UL94 V-2 flammability rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $1.20 |
| 10+ | $0.35 | $0.90 |
| 100+ | $0.25 | $0.65 |
| 1,000+ | $0.18 | $0.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 3 positions, all loaded, in a single row.
The pitch is 5.08mm (0.200 inches).
The header uses through hole mounting with solder termination.
Yes, it includes a friction lock fastening type.
