| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
67 pcs
|
67 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

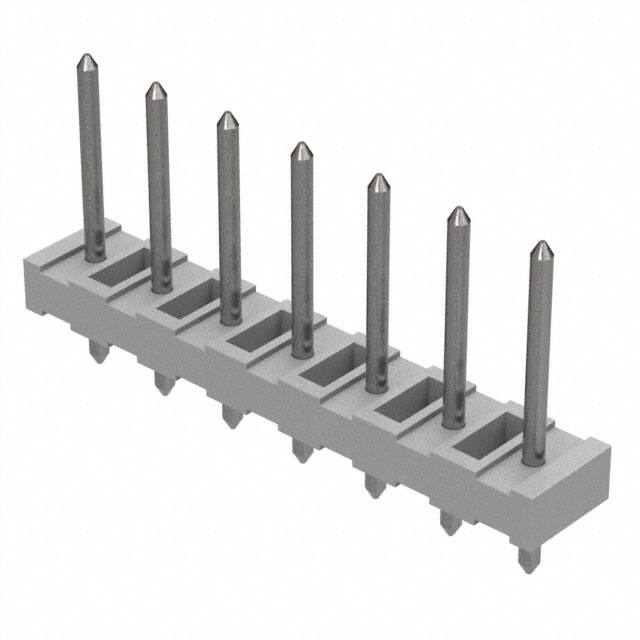

The Molex 0010081071 is a 7-position unshrouded pin header designed for board-to-board or cable connections. This connector features a single row of circular male pins on a 5.08mm pitch, making it suitable for applications requiring reliable, polarized connections.
Key specifications include a through hole mounting style with solder termination, a contact length of 11.94mm and overall contact length of 19.05mm, and an insulation height of 3.18mm. The contacts are made of brass with a 100.0 microinch tin finish, and the insulator is natural polyamide (PA) nylon with a UL94 V-2 flammability rating.
The push-pull fastening type allows for easy mating and unmating. The connector is suitable for use in a variety of electronic devices where a 5.08mm pitch header is required, such as in industrial controls, power supplies, and test equipment.
| Qty | Low | High |
|---|---|---|
| 150+ | $0.81 | $0.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 7 positions in a single row.
The pitch is 5.08 mm.
Through hole.
Tin, with a thickness of 100.0 microinches (2.54 µm).
Polyamide (PA), nylon, natural color.
The RoHS status is listed as RoHS3 Compliant (unverified).
UL94 V-2.
