| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,386 pcs
|
11386 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature Range | |
| Orientation | |
| Overall Contact Length | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

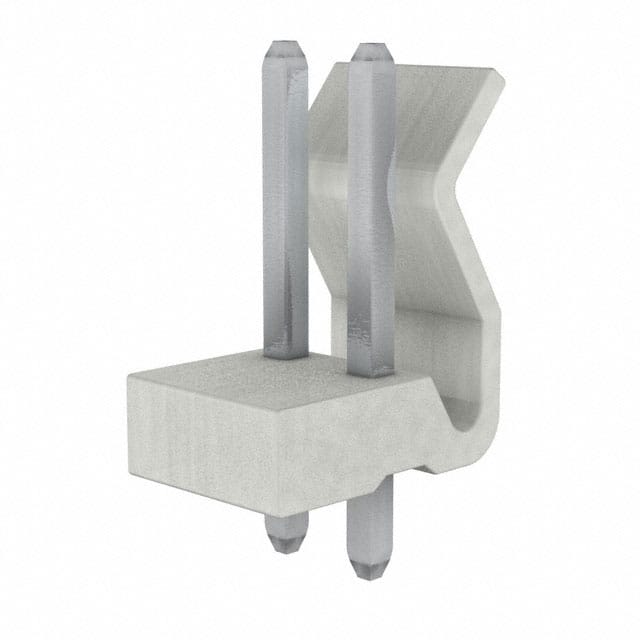

The Molex 0009652028 is a wire-to-board header from the KK® 396 series, designed for power applications. It has 2 circuits with a 3.96mm pitch and vertical orientation. The header is through-hole mounted and features a shrouded one-wall design with a friction lock for secure mating.
Key specifications include a current rating of 7A and voltage rating of 250V, with an operating temperature range of -40°C to +105°C. Contacts are made of brass with a tin plating thickness of 5.08µm. The insulator is natural-colored nylon 6/6 with a UL94 V-2 flammability rating.
The header is packaged in a bag and is RoHS compliant, with REACH SVHC not contained and low-halogen status. It is suitable for board-to-cable/wire connections in various electronic devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.20 |
| 10+ | $0.07 | $0.16 |
| 100+ | $0.05 | $0.12 |
| 1,000+ | $0.04 | $0.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
3.96mm (0.156").
7.0A.
250V.
Through hole.
-40°C to +105°C.
Yes, per datasheet it is RoHS compliant.
