Mfr Part #:

0009481084

Name: 0009481084
Brand: Molex
SKU: 0009481084

Mfr Name: Molex

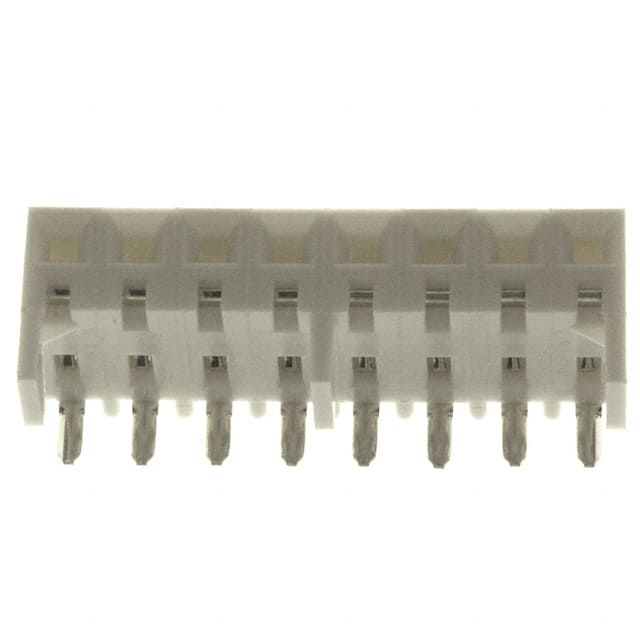

CONN RCPT 8P 0.156 TIN EDGE MNT

Stock on Request

0009481084 Description

Short technical summary and product information.

CONN RCPT 8P 0.156 TIN EDGE MNT

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

0009481083

Molex

CONN RCPT

Category	Headers, Receptacles, Female Sockets
Manufacturer Name	Molex
Connector Type	Receptacle
Contact Finish	Tin
Contact Finish Thickness	60.0碌in (1.52碌m)
Contact Length	0.145" (3.68mm)
Contact Type	Female Socket
Current Rating (Amps)	5A
Fastening Type	Locking Ramp
Features	Board Hooks
Insulation Color	Natural
Insulation Height	0.308" (7.82mm)
Material Flammability Rating	UL94 V-0
Mounting Type	Board Edge, Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-40°C ~ 105°C
Pitch	0.156" (3.96mm)
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	600V
